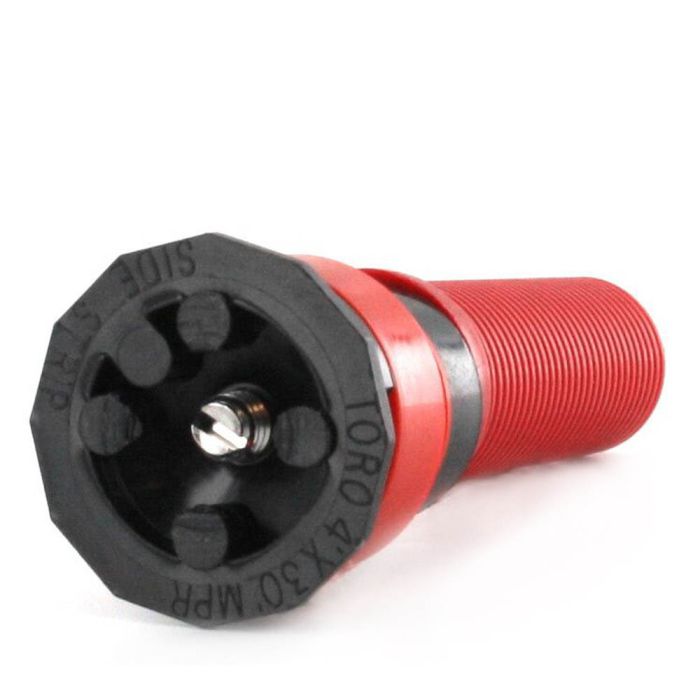

Toro MPR Plus Side Strip Male Spray Nozzle (4 x 30 ft.) | 4-SST-Toro

• Flow rate: 0.65 - 1.16 GPM
• Operating pressure for optimum nozzle performance: 30 PSI
• Recommended operating pressure range: 20-50 PSI
• Maximum operating pressure: 75 PSI

True matched precipitation rates and color coding by radius are just a few of the exciting features of 570 MPR Plus spray nozzles. Fits any 570 pop-up body; shrub adapter; riser extender or shrub riser. Flow rate: 0.65 - 1.16 GPM. Operating Pressure: 20 - 50 PSI.

• Eliminates nozzle fogging
• Compensates for pressure variations within a system
• Retrofits any Toro nozzle to pressure compensating feature
• Maintains approximately 30 PSI performance at pressures exceeding 30 - 55 PSI
• Matched precipitation rates ensure all nozzles (every radius and pattern) apply water at the same rate
• Low-flow rates allow for more sprinklers to be placed on the same zone
• Available preinstalled PCDs eliminate fogging; conserve water and provide precise flow rates
• Color coding by radius for easy identification
• Standard and special spray patters for varying applications
• Customized screens developed for each nozzle for better filtration
• Complete selection of arcs for all radius options - full; 1/2; and 1/4
• Precise radius/flow adjustment; will not lose adjustment
• Patterns for small areas: full set of arcs for 10 ft.; 8 ft.; 5 ft.; radius nozzles
• 4 ft. x 18 ft. side strip ideal for medians
• 2 ft. x 6 ft. for small planter beds and other narrow areas.
• 5 levels of trajectory
• Convenient nozzle packaging - nozzles and screens packed separately in attached bags
• Fine-mesh filter screens; prevent clogging of lower gallonage nozzles
• Adjustment screw allows up to 25% reduction in radius and complete shutoff
