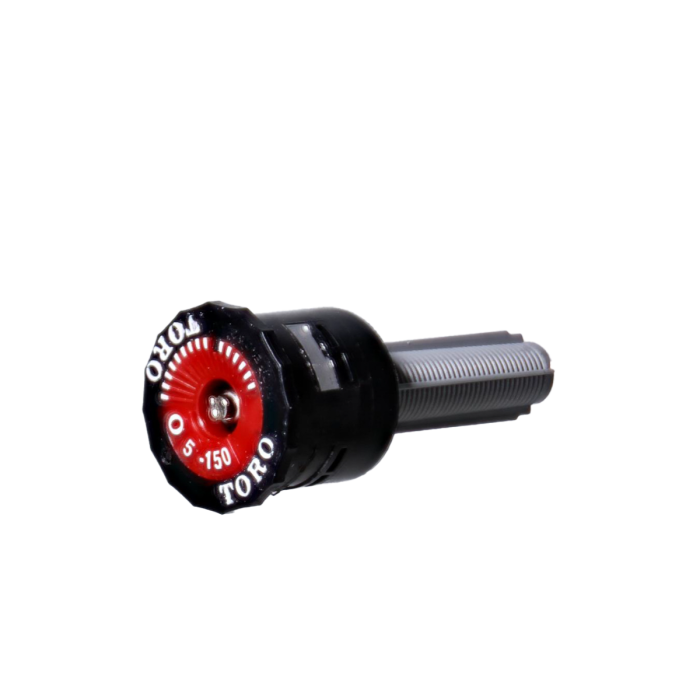

Toro Precision 150 Degree Female Thread Nozzle (5 ft.) | O-5-150-FEMALE

• Spray Radius: 5 ft
• Connection: Female
• Spray Pattern: 150 Degree

Toro's new Precision Series Spray Nozzles deliver increased efficiency over standard spray head installations. Lowering the standard precipitation rate* to 1" per hour - or less, these nozzles are designed to use less water and reduce runoff.

• H2O Chip Technology
  • A patented nozzle system that distributes water more efficiently and reaches the desired radii with less flow
  • Expanded selection of arc choices for precise distribution
• Lower Precipitation Rate* - One Inch Per hour (or less)
  • Uses 1/3 less flow to reach a radius of a conventional spray nozzle yet achieves higher irrigation efficiency
• No Moving or Sonic Welded Parts
  • Assures no variation at the end of the water arc for better edge definition
  • Consistent, reliable performance
• Uniform Droplet Size
  • The H2O Chip generates a larger, more uniform droplet size - resulting in inconsistency across the irrigated arc
  • Increased wind resistance
  • Minimizes unintentional watering of hardscape features and run-off
• Greater Operating Pressure Range
  • Consistent performance from 20 to 50 PSI
  • No wasteful misting or fogging
• Male & Female Threaded Models Available in:
  • 5 Radii between 5' and 15'
  • 9 Different arcs between 60 degrees and 360 degrees
  • 3 Specialty arcs - right corner, left corner & center strips

• Radius: 5'-15'
• Operating pressure range: 20-50 psi (maximum - 75 psi)
• Flow Rate: 0.038 - 2.4 GPM
• High-velocity streams of water achieve the desired radius with less water.
• The H2O Chip drives the Precision Series Spray Nozzle performance
