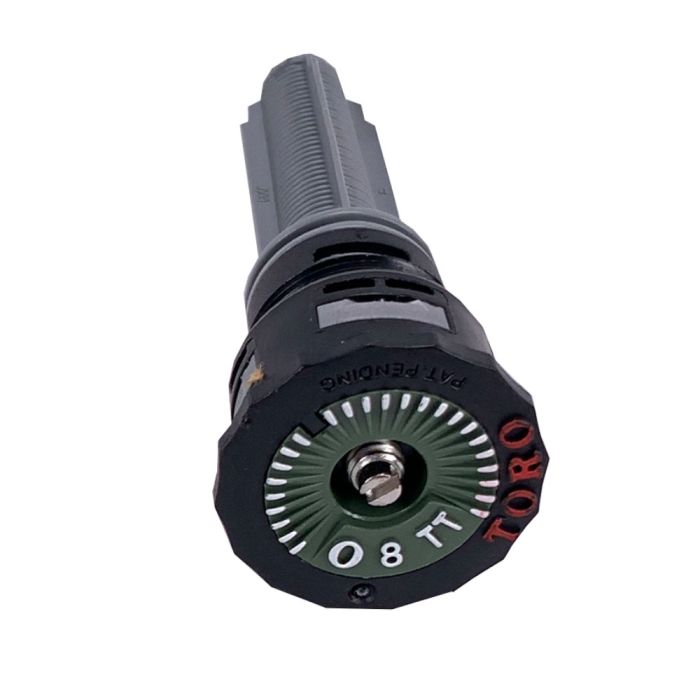

8 ft. Precision Spray, 240 Degree Nozzle w/ Screen, Toro (Male) Thread, PC
- Distance: 8 ft
- Connection: Male
- Arc: 240 Degrees
Features & Benefits
Toro® Precision™ Series Spray Nozzles are the most efficient spray nozzles available and feature proprietary H2 O Chip Technology. With a precipitation rate of 1” per hour, Precision™ Series Spray Nozzles help irrigation professionals better manage water usage, eliminate runoff, and reduce their customers’ water bills. These nozzles are available in a wide variety of arcs and radii, as well as Toro (male) and female-threaded bodies, making them ideal for large-scale installations and retrofits. In addition, the best-in-class* Precision™ Series Spray nozzles are available with factory-installed Pressure Compensating Discs (PCD).
Patented H2 0 Chip Technology
- Each nozzle contains one or more H2 O chips that create a high-frequency oscillating stream and deliver a precipitation rate of 1” per hour – an industry-first – while using up to 35% less water than a standard MPR nozzle.
Pressure-Compensating Versions Available
- At a fraction of the cost of a pressure-regulating spray head, pressure-compensating Precision™ Series Spray Nozzles maintain a 1” per hour precipitation rate and minimize misting and water waste that results from higher pressure systems.
Design and Retrofit Effectiveness
- The lower flow rate of Precision™ Series Spray Nozzles maximizes design efficiency and helps reduce overall material costs based on the need for fewer valves and controller stations.
Third-Party Performance Validation
- Precision™ Series Spray Nozzles** have been tested and validated in the field and at the Center for Irrigation Technology (CIT).
Product Details
- Radius: 8 ft
- Flow 0.06-2.4 GPM (.2 - 9.6 LPM)
- Precipitation Rate: ≤ 1"/hr (25 mm)
- Recommended Operating Pressure: Non-PCD: 30 PSI (2.0 BAR) With PCD: 40 PSI (4.0 BAR) and above
- Thread: Male
- Pattern: 240
