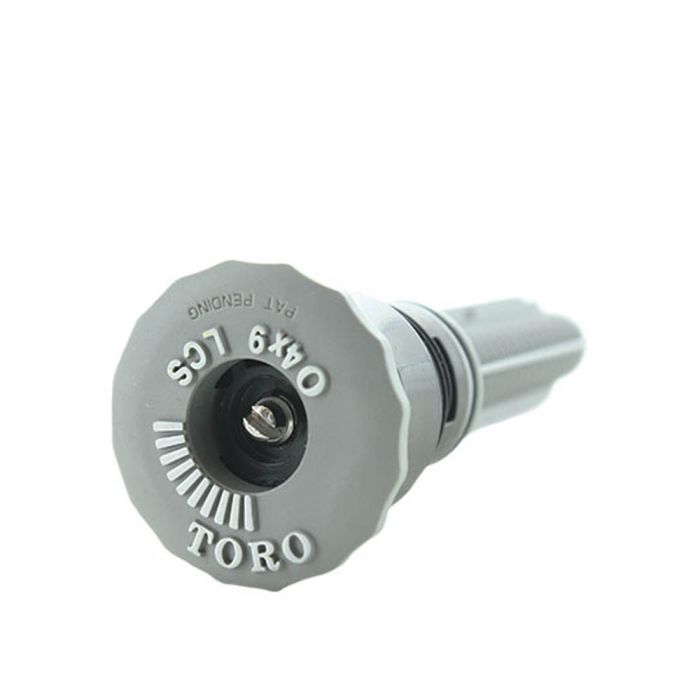

Toro Precision Left Corner Strip Male Nozzle (4 x 9 ft) | O-T-4X9-LCS

• Spray Radius: 4 x 9 ft
• Connection: Male
• Spray Pattern: Left Corner Strip

Features & Benefits

Toro's new Precision Series Spray Nozzles are the most complete and efficient spray nozzle line available to help irrigation professionals manage water use, eliminate runoff and reduce customer water bills.

• Patented H20 Chip Technology Using patented H20 chip technology - and no moving parts - each Precision Series Spray nozzles creates one or more high-frequency oscillating streams to achieve the desired arc and radius with 1/3 less water usage.
• Maximize Irrigation Efficiency Precision Spray nozzles deliver an industry first 1"/hr (25 mm/hr) precipitation rate, which better matches soil infiltration rate. This lower precipitation rate, along with high distribution uniformity make this nozzles family the most efficient nozzle from 5' - 15' (1.5 - 4.6 m).
• Design and Retrofit Effectiveness The lower flow rate of Precision Series spray nozzles maximize design efficiency and save on overall material costs by using fewer valves and fewer controller stations. In addition, existing systems with low pressure can be fixed with a simple retrofit of the existing high-flow nozzle.
• Third-Party Performance Validation Precision Series Spray nozzles have been tested and validated in the field and at the Center for Irrigation Technology (CIT).

Additional Features

• Specialty Arcs available (60, 120, 150, 210, 240 degrees)
• Radius reduction 25% maximum
• Color coded for radius on top of nozzle
• Precipitation rate < 1" hour (< 25 mm/hour)

• Maintains precipitations rate as the radius is reduced up to a max of 25%
• Matched precipitation rate within radius families
• Screen attached to nozzle for easy insertion into the spray body
• Works on all spray bodies

Product Details

• Radius: 4'- 9' Left Corner Strip
• Flow: .04-2.4 GPM (.15 - 9.1 LPM)
• Precipitation Rate : < 1"/hr (2.5 cm)
• Recommended Operating Pressure: 30 PSI (2.0 Bar)
• Maximum Operating Pressure: 75 PSI (5.2 BAR)
• Thread: Male and Female
• Pattern: 4' x 9' Left Corner Strip
