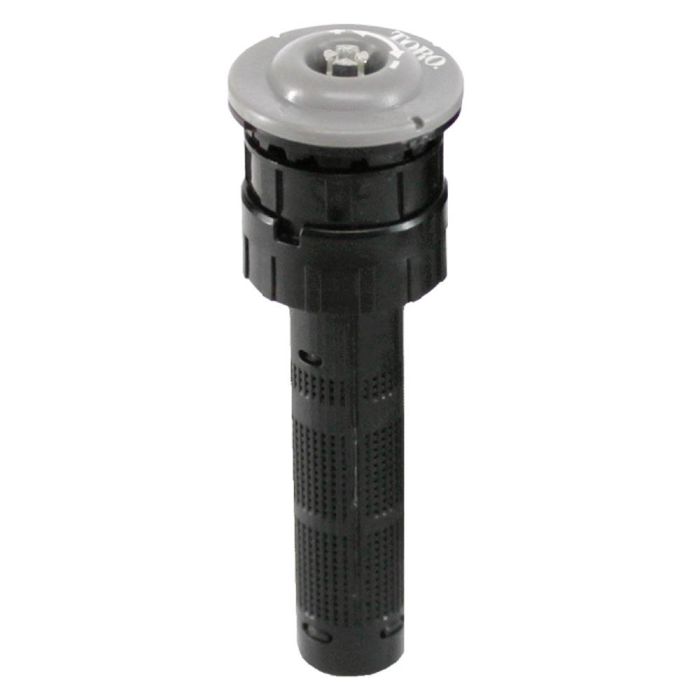

Toro Precision Series Rotating Full Circle Female Rotary Nozzle 14 - 26 ft | PRN-F

SKU

PRN-F

Overview

Toro PRN-F-Precision Rotating Female Nozzle Full Circle

Based off the design of the worlds leading gear-driven rotor for golf applications, the Precision Series Rotating Nozzle powered by its proven planetary gear drive delivers wind-resistant, multi-stream, multi-trajectory patterns. Both the full circle and adjustable arc models deliver a radius range of 14 to 26 feet with exceptional uniformity and outstanding close-in watering, preventing the need to extend irrigation cycles to compensate for brown spots. The consistent matched precipitation rate of 0.55 inches per hour helps meet the needs of tight water windows.

Features & Benefits

Gear-Driven Precision Series Rotating Nozzles reduce the number of models that need to be carried in inventory. Two male-threaded nozzles and two female-threaded nozzles are all that are required to cover radius range from 14-26 feet and 45-360 degrees.
Fewer Models Precision Series Rotating Nozzles reduce the number of models that need to be carried in inventory. Two male-threaded nozzles and two female-threaded nozzles are all that are required to cover radius range from 14-26 feet and 45-360 degrees.
Matched Precipitation Rate of 0.55/hr. These nozzles deliver water more slowly and evenly than standard spray nozzles. The precipitation rate of 0.55 "/hr helps prevent the need to increase irrigation run time so much that it is tough to apply all the water needed for a given water window.
Consistent Speed of Rotation The Precision Series Rotating nozzle is not dependent on system pressure like competitive models. The gear drive mechanism delivers a consistent speed of rotation regardless of system pressure and prevents product stalling at low pressure. In addition, the gear drive allows for a wider operating pressure range of 20-75 PSI.
Higher Output Torque The gear drive develops an output power that is 10 times stronger than the output torque of competitive units. This ensures positive rotation with no slowing caused by environmental factors such as blades of grass or small debris pushing up against the nozzle.

EZ ARC Visual Arc Adjustment

The unique adjustment method allows for pre-setting of arc by hand or tool before the nozzle is installed. Visual indicators allow the user to quickly adjust the arc pattern to the desired arc from 45-270 degrees. The adjustment band can be adjusted by hand or with the pre-included tool.

Step-Up Technology

STEP-UP Technology is designed to deliver high uniformity with matched precipitation for in-close watering all the way out to the furthest radius point. The unique steps create 15 streams, each designed to cover an area of the pattern.

Water Management Highlight

Precision Series Rotating Nozzles supply matched precipitation with any arc, any radius from 14 to 26 feet. Water applies slowly and evenly to reduce runoff and wasted water.

Specifications
