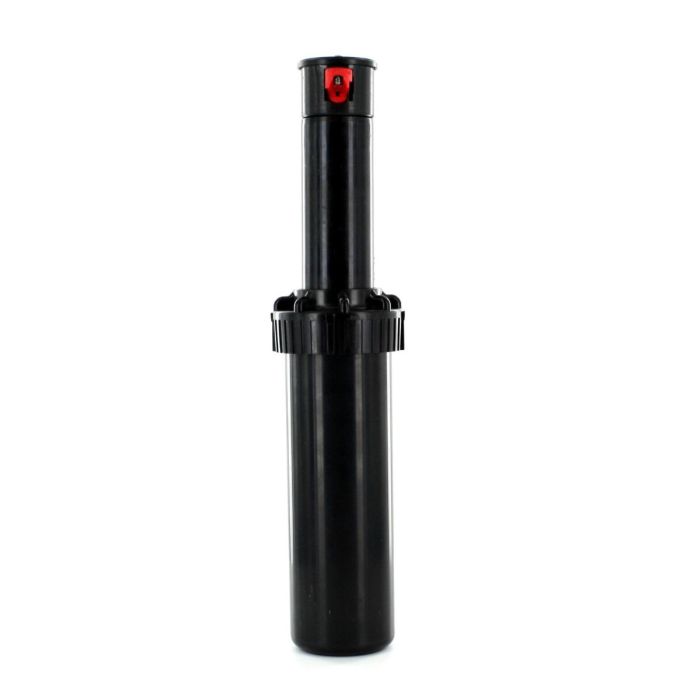

Toro Rotor 4 in. | MINI-8

In stock
SKU
MINI-8
Free Shipping on Orders over $149
Sales Price $12.95 Our Price $18.89 You save 31%
Case of 25
$12.69 / each
Pallet of 1600
$12.43 / each

Toro Rotor 4 in.

  • Inlet Size: 1/2
  • Pop-Up Height: 3-3/4 in.
  • Spray Pattern: Part Circle Adjustable (40 - 360)

Features & Benefits

Simple to use, water-efficient, and versatile, the Mini 8 Series does it all. When spray heads won't do the job and a full-size rotor is just too much, you need the Mini 8 from Toro. Designed to fill in that hard to cover an area between 20' (6.1m) and 35' (10.7m), the Mini 8 provides great value and water efficiency for your landscapes.

The Mini 8 has a simple to use top-of-rotor arc setting feature that ensures easy and accurate arc adjustments from 40 degrees to reversing full-circle 360 degrees. Furthermore, the 1/2 female-thread inlet, pressure-activated riser seal, a robust trip mechanism, ratcheting riser, and pre-installed 1.5 GPM nozzle combine for easy installations and reliable long-term performance.

The Mini 8 nozzles are designed for the efficient watering of smaller spaces, which means water savings when compared to full-size rotors. When compared to fixed sprays, the flexibility of the Mini 8 reduces the number of heads required, which in turn reduces the number of valves and stations needed. In either scenario, the Mini 8 brings together money savings and better water management.

Top-of-rotor Arc Adjustment
Allows easy arc setting with a slotted screwdriver and features a quick reference dial for fast and accurate adjustments.

Pressure-activated Riser Seal
Helps prevent debris intrusion into the rotor’s body and, ultimately, the system’s water lines.

Ratcheting Riser
Allows the riser and fixed left edge to quickly be turned to the desired position without having to re-orient the entire rotor.

Five Interchangeable Nozzles
To cover varying flow and radius requirements.

Part And Full Circle In One
Offers more flexibility on new system installs and reduces inventory requirements.

Product Details

Dimensions

  • Body height: 6” (150mm)
  • Pop-up to nozzle height: 3 ¾” (95mm)
  • Exposed diameter: 1 ¾” (45mm)
  • Cap diameter: 2 ¼” (57mm)
  • Inlet: ½” (13mm) female-thread

Operating Specifications

  • Radius: 20’–35’ (6,1–10,7m)
  • Operating pressure range: 30-60 PSI (2,0-4,1 Bar)
  • Flow Rate: 0.80 – 3.40 GPM (3,0-12,9 LPM)
  • Trajectory: 25°

Options Available

  • 102-2024 – Adjustment Tool

Warranty

  • 5 years

Nozzle Performance Chart

Nozzle
(Gallons)
Pressure
(PSI)
Flow
(GPM)
Radius
(Feet)
Pressure
(kPa)
Flow
(L/M)
Flow
(M3/H)
Radius
(Meters)
0.75 30
40
50
0.8
0.9
1.2
19
20
21
207
276
345
3.03
3.41
4.54
0.2
0.2
0.3
5.8
6.1
6.4
1.0 30
40
50
1.1
1.3
1.5
22
23
24
207
276
345
4.16
4.92
5.68
0.2
0.3
0.3
6.7
7.0
7.3
1.5 30
40
50
1.2
1.4
1.6
26
28
30
207
276
345
4.54
5.30
6.06
0.3
0.3
0.4
7.9
8.5
9.1
2.0 30
40
50
1.4
1.7
2.0
30
31
32
207
276
345
5.30
6.43
7.57
0.3
0.4
0.5
9.1
9.4
9.8
3.0 30
40
50
2.3
2.6
3.0
33
34
35
207
276
345
8.71
9.84
11.36
0.5
0.6
0.7
10.1
10.4
10.7
More Information
Brand Toro
Type Rotor
Application Residential
Inlet Size 1/2
Pressure Range (PSI) 30-60
Warranty 5 Years
Pop-Up Height 3-3/4 in.
Riser Material Plastic
Spray Pattern Part Circle Adjustable (40 - 360)
