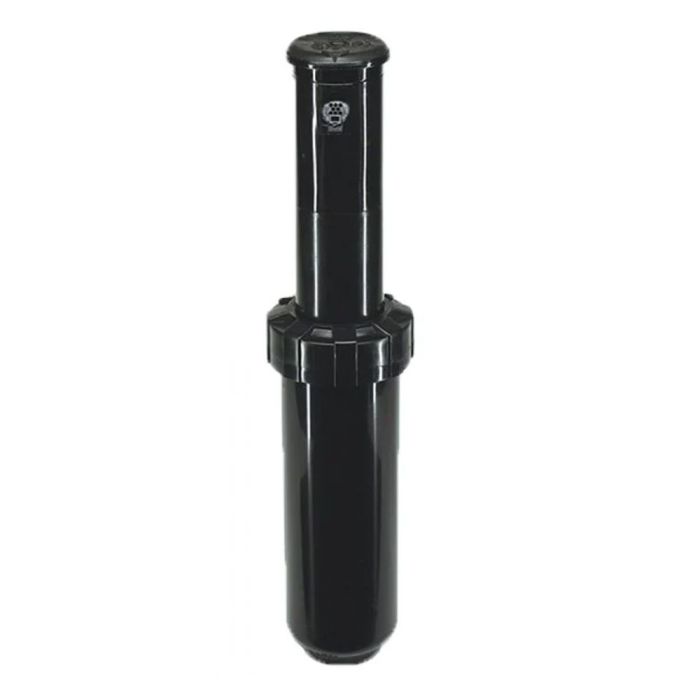

Toro Rotor with Check Valve 1 in. | T7P-02

The Toro T7 Rotor is built rugged to withstand the harsh conditions and vandalism present in municipal/government, sports fields and commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. Its extensive customer identified features including a full 5 ¾ in. pop-up height and large radius make it ideal for sportsfields, parks and other large turf applications. Further enhancing its versatility, the T7 is now also Low-Flow Versions, for smaller radius and lower flow applications, such as baseball infields.

Features & Benefits

• Top Arc Indication
  • Arc setting indicator on top of the rotor allows for easy wet or dry adjustments from 45 - 360 degrees.
• Vandal and Abuse Resistance
  • Smart Arc memory safely returns sprinkler to previously set arc if vandalized.
• Versatility
  • Available in low-flow models (identified by "circle L" on rubber cover), for short radius (38 - 53 ft.) applications, such as baseball infields.
• High Efficiency Nozzles
  • Single port design ensures water is evenly distributed across the pattern without putting too much water near the head, which prevents seed from washing away.
• Design Solutions and Safety
  • Standard check valve to prevent low head drainage. Small exposed diameter reduces possibility of injury on play areas. Stainless steel riser and nozzle base stands up to the toughest of abuse.

Product Details

• Radius:
  • Standard models: 46 - 75 ft.
• Flow Rates:
  • Standard models: 6.6 - 30.6 gpm
• Operating pressure range: 40 - 100 PSI
• Recommended operating pressure: 60-70 PSI
• Inlet size: 1 in. female NPT
• Nozzle trajectory: 25 Degrees
• Arc adjustment: 45 - 360 Degrees (unidirectional at 360 Degrees)
• Pop-up height (measured from top of cap to nozzle): 5 in.
• Body height: 8.8 in.
• Body diameter: 2.7 in.
• Rubber cover diameter: 2.2 in.

* Pre-installed nozzle. Data based on 180°.
