Underhill 32/63 Station Convertor | W-NOV-U

In stock
Free Shipping on Orders over $149
Sales Price $406.25 Our Price $442.05 You save 8%

Note: Item does not qualify for Priority Processing. Please anticipate a delay in shipment.

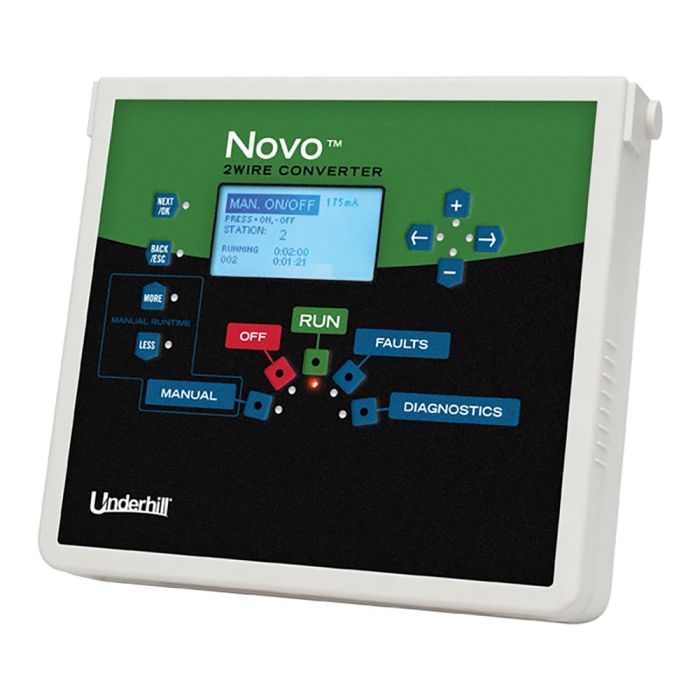

The Novo? 2Wire Converter is a true technological breakthrough, offering quick, easy and reliable conversion of existing multi-wire controllers to take advantages of 2Wire cost savings and expansion capabilities. Reduce pavement crossing and trenching when expanding an existing multi-wire system.

Typical applications

Large residential estate, light commercial, commercial, golf and AG applications

Ideal for New or Retrofit Installations

Easy for new installations, or use existing field wires to reconnect previously abandoned stations or add new stations

Use the Power of an Existing Controller

The Novo works with any controller and simply transmits the 24 VAC signal down a 2Wire path. Use all of programming functions by the ?host? controller.

Built-in Troubleshooting / Fault-Finding Functions

Reduce the time and effort to locate a problem when it occurs allowing the Novo to pinpoint

Optional Outdoor Enclosures

The Novo can be install in a wall-mounted high-impact plastic enclosure or a stainless steel enclosure with key-lock entry

Station Count Manage up to 32 stations in standard mechanical footprint or up to 63 stations by adding 8-station senders (TW-SEN-8)
Menu Driven Display Run, Faults, Diagnostics, Programming, Off and Manual
Backlit Display 128 x 64 backlit, black and white display
Standard Features Plastic indoor Novo Case External transformer 4 (qty) 30" long color-coded pre-attached, color-coded cable assemblies
Transformer Output 32 VAC - Maximum Input Voltage 32 VAC 1.3 Amps @120 VAC, 60 Hz Maximum Continuous 2Wire main path current 1.0 Amp ? Maximum solenoid continuous current 1.2 Amps @ 104? F to 0.6A @ 158? F 5-90% Humidity (non-condensing) UL listed and CE recognized
Mechanical Dimensions (Indoor Model) 6.3" H x 7.33" W x 1.78" D (16 cm x 18.6 cm x 4.5 cm)
Weight: Novo case w/ transformer 4.2 lbs. (1.90 Kgs) Transformer only 2.8 lbs. (1.27 Kgs)
Enclosure Options High-impact plastic enclosure 11.3" H x 9.3" W x 5.3" D (10 cm x 8 cm x 4.7 cm) Stainless Steel Enclosure 11.3" H x 9.3" W x 5.3" D (10 cm x 8 cm x 4.7 cm)
More Information
Brand Underhill
Warranty 2 Years
Type 32/63 Station Converter
Brochure (816.11 kB)
Guide (1.32 MB)
Manual (1.77 MB)
