Weathermatic 30 PSI Pressure Regulated Spray Head with Adjustable Nozzle with LXAAN12A 4 in. | MAX4PRS30-AAN12A

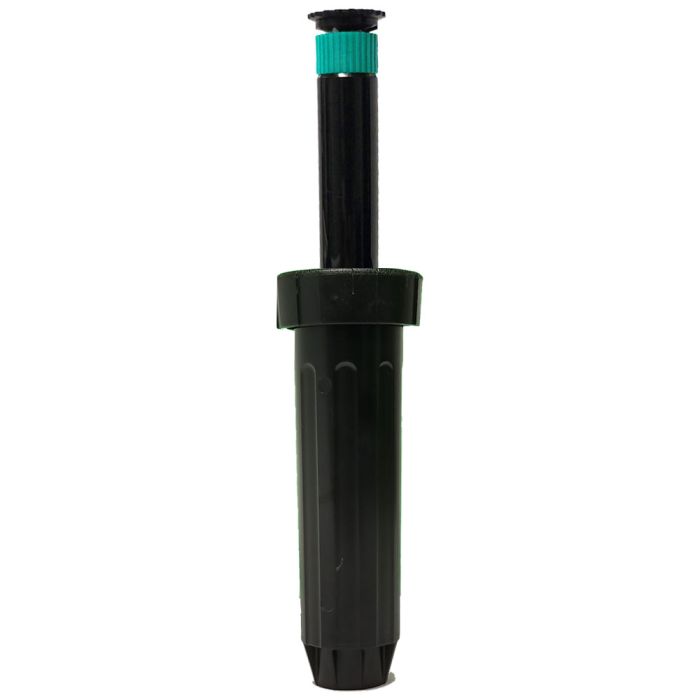

Weathermatic MAX4PRS30 4" Pressure Regulated Pop-Up Spray Head

Every Max Spray model includes a super-strength spring with over 35% stronger retraction force than the leading competitor. Result: Max Spray better prevents stick-ups in the field.

Maximum Seal

• Industry first dual pressure-activated seal with 720 degree sealing surface around flow tube stem, cap, and body eliminates stick-ups and cap to body leaks
• Industry standard white Santoprene seal for ultimate performance

Maximum Spring

• Industry's strongest spring for positive retraction
• Corrosion resistant stainless steel material for long life
• Unique reversible spring design can be installed in either direction for simple, fast field assembly

Maximum Self-Cleaning Check Valve

• Enhanced debris resistance through expanded surface area
• Tapered design for self-cleaning operation
• Positive seal even in dirty water environment

Maximum Pressure Regulation

• Reduces water consumption by up to 50%
• Eliminates wasted water caused by high pressure no misting and fogging
• Optimizes outlet pressure for consistent performance, even with pressure variations

Maximum Level Cap

• Flat cap and easy pull up, low profile flush plug for sprinkler leveling
• Superior labeling process allows better identification and customization

Maximum Nozzle Options

• Compatible with all industry-standard female thread nozzles

Features / Benefits

• Easy grip-and-turn adjustment
• Exceptional uniform coverage
• Maintains matched precipitation rates between arcs within a radius
• Stainless steel radius adjustment screw
• Reusable, dual compartment resealable bags
• Five-year trade warranty.

Applications

• For use with all MAX Series spray heads
• Fits all industry-standard spray heads with male thread risers

Operating Data

• Precipitation rate: 1.18 - 5.74 in. per hour
• Pressure: 20 - 40 PSI
