Premier Brass Nozzles B Series (Formerly 5500 Series)

Milled brass design provides best available uniform precipitation for water, material and labor savings in a professional design. Arcs and angles for any landscape requirement. Reinforced border spraying combines with an extremely flat slope of distribution to eliminate the requirement for ?head-to-head? coverage. B Series nozzles provide a minimum of .25" per hour precipitation at one foot from listed radius.

These precision brass nozzles are easily discernable; even from a distance; by their unique and attractive water pattern.
Mill cut part circle nozzles dramatically enhance performance offering two separate layers of water at different velocities; providing the ultimate in pattern uniformity and water conservation.
Optimal operational pressure is rated at 20 psi; (1.4 bar); substantially lower than other designs that require over pressurization to improve pattern performance.
Small uniform water droplets generated by the nozzle fall closer to the sprinkler providing an exceptionally consistent pattern and eliminate the need for conventional "head to head" spacing.
Industry standard threads allow these extended performance nozzles to be installed on most competitive manufactures of spray heads providing a quick and easy upgrade to existing systems.
Large inlet porting on B20 - B24 nozzles allows more debris to pass through it offering superior contamination resistance in dirty water or reclaimed applications.
Single port brass nozzles can be easily cleaned with out risk of permanent damage and in many cases with out removing the nozzle from the head.
These nozzles provide the widest selection of any other matched precipitation family on the market today. 80 nozzles are available; offering seamless spacing transitions from 3 ft to 20 foot and flows ranging from 0.3 GPM to 7.5 GPM

B Series nozzles fi t LX sprayheads, LXS, 72 and 73 shrub adapters, as well as all industry standard male thread risers
B3 nozzles are compatible with most micro-irrigation application rates
Many designers derate recommended spacing for climate and wind. Listed radius is determined by ASAE industry standard measurement of .01" per hour.
Precipitation: 1.2" per hour (25 mm per hour) for full circle / 20 psi (1,4 bar) at maximum triangular spacing

B Series is identical to former 5500 Series. This is a name change for easier identification. Example: B15H = 5515-18

Weathermatic B Series Brass Nozzles

30? and Low Angle 15? Trajectory / Matched Precipitation

B3 3'- 5'

B10 10'

B12 12'

B15 15'

B18 18'

B20 20'

B24 24'

Radius

Flow

Radius

Flow

Radius

Flow

Radius

Flow

Radius

Flow

Radius

Flow

Radius

Flow

ARC

PSI

ft.

GPM

ft.

GPM

ft.

GPM

ft.

GPM

ft.

GPM

ft.

GPM

ft.

GPM

20

5'

0.3

8'

0.3

9'

0.5

11'

0.7

12'

1.0

13'

1.2

16'

1.8

25

6'

0.3

8'

0.4

9'

0.6

12'

0.8

13'

1.1

14'

1.4

17'

1.9

30

7'

0.3

9'

0.4

11'

0.7

12'

0.9

13'

1.2

15

1.5

18'

2.1

20

5'

0.3

8'

0.6

9'

1.0

11'

1.4

12'

2.0

13'

2.4

16'

3.3

25

6'

0.3

8'

0.7

9'

1.1

12'

1.6

13'

2.3

14'

2.7

17'

3.5

30

7'

0.3

9'

0.7

11'

1.2

12'

1.8

13'

2.5

15

2.9

18'

4.0

20

Specs

More Information
Brand	Weathermatic
Max PSI	30 PSI
Operating PSI	20 - 30 PSI
Warranty	5 Years
Spray Pattern	Quarter Circle
Connection	Female
Spray Radius	20 ft

Reviews

Q&A

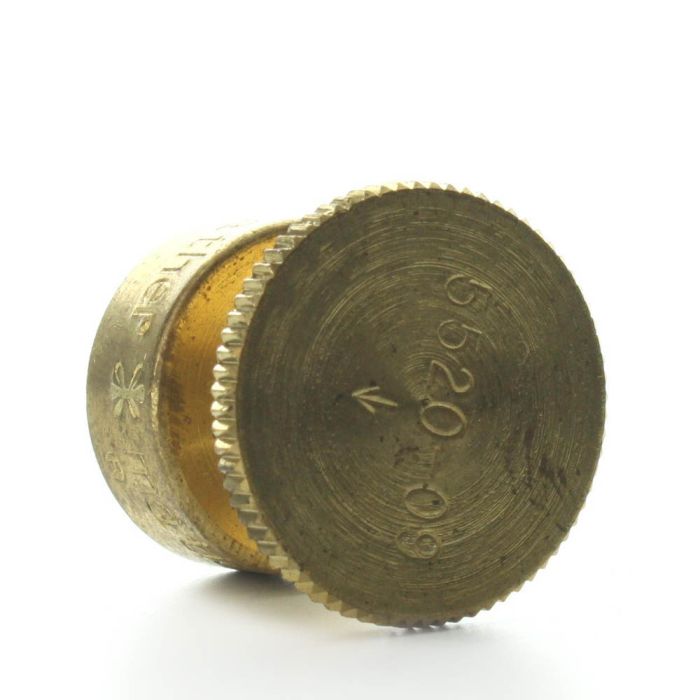

Weathermatic B Series Brass Spray Nozzle (20 ft.) | B20-Q
