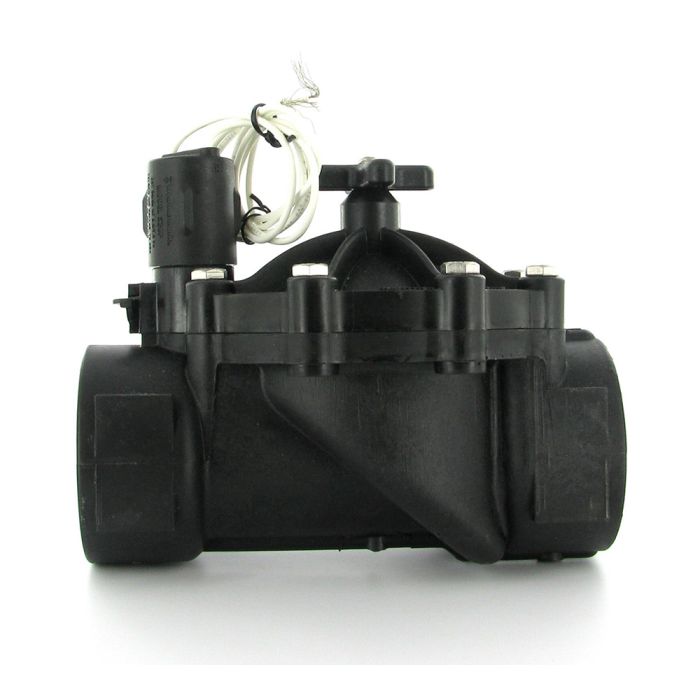

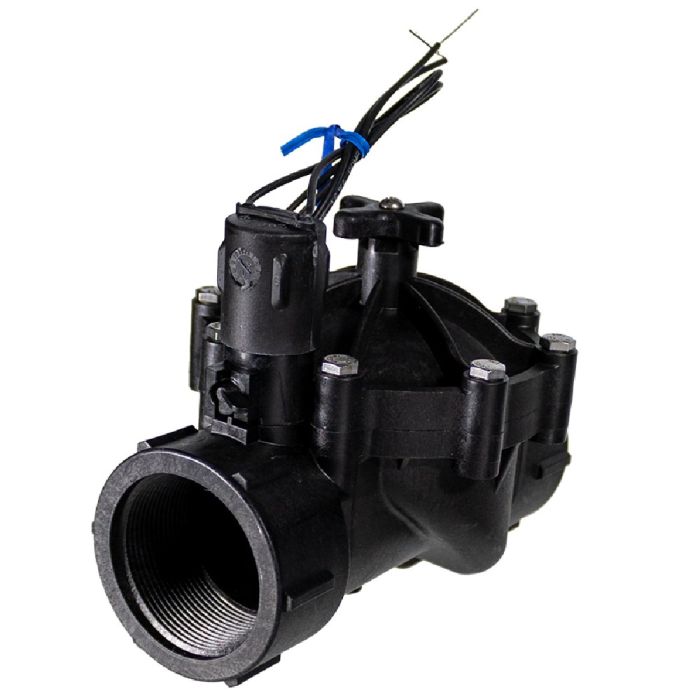

Weathermatic BlackBullet MAX In-Line Valve with Flow Control 2 in. FPT | 11024FCR-20D

• Size: 2 in.
• Valve Type: In-Line
• Connection: Female Pipe Thread

Featurers & Benefits

Dual flexing diaphragm ports provide great contamination resistance in dirty water or reclaimed applications; Fail safe "reverse flow" design insures that the valve will remain closed in the event of wall failure.

• SUPERIOR MATERIAL
  • Glass-filled nylon construction gives the Black Bullet
    added strength over conventional PVC valves
  • Pick up a Black Bullet in one hand and any other valve
    in the other to feel the difference
• MULTIPLE-BOLT COVER
  • Stainless steel bolts easily thread in and out of quality brass
    inserts
  • Black Bullet installers will tell you they rarely need to
    open a Weathermatic valve. When you do, it is easy to
    open and easier to close than most valves using screws
    or jar tops that are susceptible to stripping, dirt,
    and grit
• UNMATCHED MANUAL BLEED
  • Send the Black Bullet into action by simply pulling
    the trigger
  • It’s the easiest, driest internal manual bleed in the
    business that won’t flood the valve box
  • No twisting on a solenoid or bleed screw is required
• SHOCKING SHOCK CONE
  • The Black Bullet puts the hammer to water hammer by
    incorporating a cone-shaped diaphragm base
  • The shock cone interrupts the water flow more
    gradually than other diaphragms to enable quick valve
    closure without the damaging effect of
    water hammer
• REVOLUTIONARY REVERSE-FLOW
  DESIGN
  • The Weathermatic hallmark reverse flow design with a 45-
    year track record brings you:
    • Reverse flow design means the valve fails shut rather than
      open in the event of diaphragm failure, unlike conventional
      forward flow valves that fail open
    • Balanced pressure on the diaphragm extends valve life over
      forward flow valves
• 15 YEAR TRACK RECORD
  • The Black Bullet track record shows less than a fraction of 1%
    return rate over 15+ years of reliable performance
• AMAZING VALUE FOR THE PRICE!
  • Seasoned installers know that valves are the last place to
    cut expenses when just one call-back eliminates any cost
    savings on the job
• STANDARD DIRTY WATER OPERATION
  • One valve for both clean and dirty water applications. Self-cleaning
    function is achieved as diaphragm actually flexes
    during operation to send dirt and debris down the line
    without the maintenance worry of filters and screens
• BEST WARRANTY IN THE BUSINESS
  • Unparalleled 10-Year Warranty provides worry-free
    replacement twice that of any other competitor.

Product Details

• 5 year trade warranty and 100% water tested
• 200 psi (13,8 bar) rating
• Unique "reverse flow" porting design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure providing zero stress to prevent "stretching," a common cause of valve failure
• Reverse flow design for water conservation in the event of failure
• Diaphragm's self cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
• Brass shock cone for smooth operation and reduction of water hammer
• Easy-to-use internal manual bleed lever; bleeds valve downstream; has stops for open and closed positions
• Marine-grade S20P solenoid with stainless steel actuator
• High-strength glass-filled body and cover with 1/4" stainless steel cover bolts and mating brass body inserts
• Brass non-rising flow control stem throttles valve from full open to closed position
• Excellent for low volume irrigation
• Contamination-resistant (CR)
• Chlorine- and chloramine-resistant EPDM diaphragm material
• XPR Pressure Regulator-the Weathermatic XPR pressure regulating module senses inlet pressure and maintains constant outlet pressure (see PRK-24 in valve accessory section for specifications)
• Non-potable alert flow handle may be substituted for the standard flow handle. Add -NP suffix.

• Wiring requires a single lead from the controller to each solenoid, plus a common neutral to all solenoids; type UF wire, U.L. listed, is recommended for all hookups:
• 24VAC/60Hz
  • Inrush: 9.48 VA
  • Holding: 5.69 VA
• 24VAC/50Hz
  • Inrush: 10.7 VA
  • Holding: 7.5 VA
• Do not use nominal voltage ratings listed above for sizing of valve wire

1. WEATHERMATIC 1100CR SERIES REMOTE CONTROL VALVE
2. INSTALL THREADS MALE ADAPTER WITH TEFLON TAPE/TYP
3. SOLENOID
4. MANUAL BLEED LEVER
5. 3/4 INCH GRAVEL SUPPORTER
6. RECTANGULAR VALVE BOX
7. EXPANSION COIL & WATERPROOF CONNECTOR
