" Bottom: ?" female inlet Radius of throw from 28 to 53 feet Note: If the overall height of spray head is too tall for your application; you can use a Hunter Pre-Made Swing Joint to move the head off the pipe and allow you to bury it deeper.
Closed case; gear drive rotor for small to medium size turf areas The popular Turbo family of gear drive rotors are designed for the most demanding applications. Long life performance is built-in to the T3 rotors by using high-strength materials and a sealed; lubricated drive mechanism. The perfect choice for "dirty water" applications; these sprinklers feature a unique internal filter and large area strainer to insure operation in the worst water conditions.

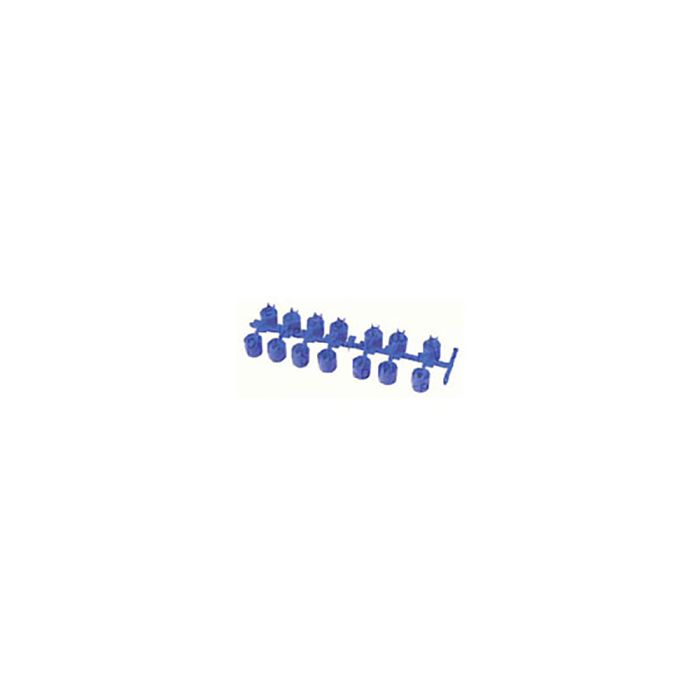

The exclusive "Arc Adjust Ring" on part circle models; makes adjustment easy - wet or dry. Field changeable nozzles allow user to change in seconds to match precipitation rates or adapt to site conditions.
Lightning fast arc adjustment dramatically minimizes installation labor normally associated with gear drive sprinklers.
Double lip pressure activated wiper seal and strong; stainless steel spring insures positive head retraction in even the most severe environments. High-tech micro filter provides unparalleled contamination resistance in dirty water conditions. Reliable gear design has proven itself in the field with over a decade of dependable service. Standard institutional grade rubber cover provides an added layer of safety in high traffic pedestrian areas. Standard "Ready Check" valve reduces soggy areas associated with low head drainage and provides additional protection against dry line shock. Vandal resistant slip clutch prevents damage to the gear train. Full circle models provide smooth continuous clock wise rotation. Part circle models are easily adjustable from 40 degrees to 360 degrees and feature arc dwell; which provides additional water at the end of both arcs. New performance packed nozzle rack offers both unmatched versatility and highly uniform watering patterns
Radius - 28' to 53' Flow - 1 to 15 GPM Operating Pressure- 20 to 65 PSI Arc Adjustment - 40 to 360 degrees
T3 model Full or Part Circle Models 3/4" FIPS (female iron pipe size) inlet Adjustable from 40 to 360 degrees "Ready Check" check valve standard Rubber Cover standard Full Wiper Seal - resists external debris Safety Clutch - protects gear train from damage
