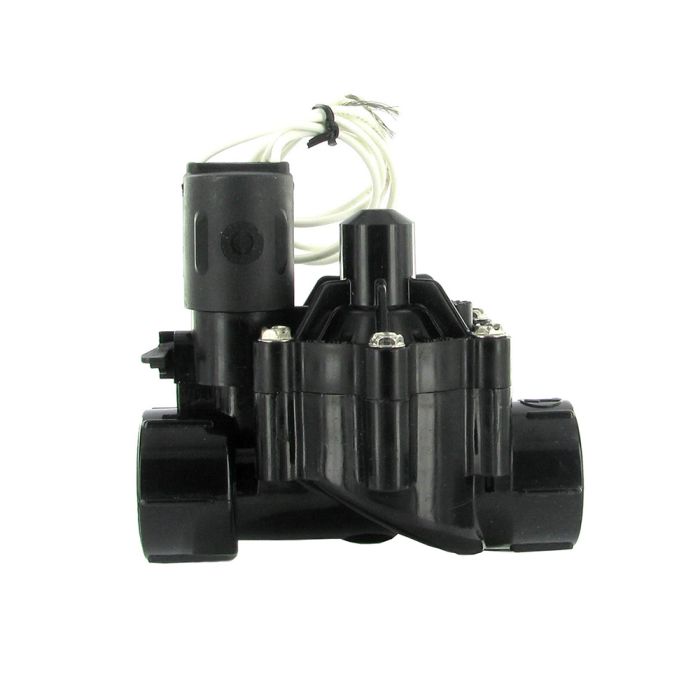

Weathermatic NITRO Inline Valve 1 in. FPT | N-100-H
SKU
N-100-H
WEATHERMATIC NITRO SERIES IRRIGATION VALVES:
The NEW Weathermatic Nitro Series' Unique "reverse flow" design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent "stretching," a common cause of valve failure. Weathermatic Nitro Series Valves have a reverse flow design for water conservation in the event of failure. Try the NEW Weathermatic Nitro Series Valves today!
WEATHERMATIC NITRO SERIES VALVE MODELS:- Weathermatic N-100-H
- Weathermatic N-100SF-H
- Weathermatic N-100F-H
- Weathermatic N-100MB-H
- Weathermatic N-100MBF-H
- Weathermatic N-100S-H
- Weathermatic 110-603SAK - Replacement Diaphragm for 1" Nitro Series Valves
- Weathermatic S20PSAK - 24VAC Replacement Solenoid
- 100% water tested
- 150 psi (10,3 bar) rating
- Unique "reverse flow" design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent "stretching," a common cause of valve failure
- Reverse flow design for water conservation in the event of failure
- Diaphragm's self cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
- Molded shock cone for smooth operation and reduction of water hammer
- Easy-to-use internal manual bleed lever; bleeds valve downstream; has positive stops for open and closed positions
- Marine-grade S20P solenoid with stainless steel actuator
- Engineering grade PVC body and cover with combination hex, slot and Phillips retaining screws
- Non-rising flow control stem throttles valve from full open to closed position on flow control models
Wiring requires a single lead from the controller to each solenoid, plus a common neutral to all solenoids; type UF wire, U.L. listed, is recommended for all hookups
24VAC/60Hz 24VAC/50Hz- Inrush: 9.48 VA
- Inrush: 10.66 VA
- Holding: 5.11 VA
- Holding: 5.97 VA
Do not use nominal voltage ratings listed above for sizing of valve wires.
Brand | Weathermatic |
---|---|
Body Material | Enginnering Grade PVC |
Flow Control | No Flow Control |
Valve Type | In-Line |
Connection | FPT |
Application | Residential |
Solenoid | Yes |
Warranty | 2 Years |
Size | 1 in. |
