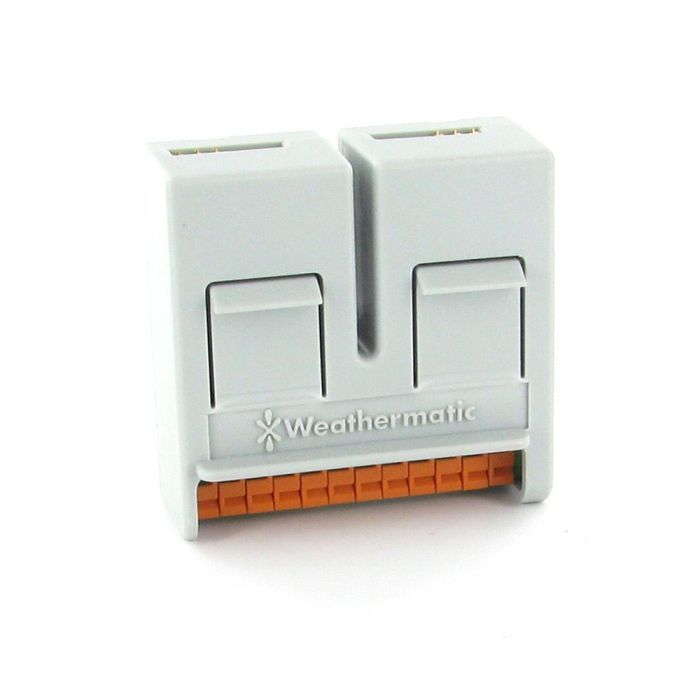

Weathermatic SLM12 12 Zone Expansion Module for PL1600 and SL1600 Timer
Compatible with the PL1600 and SL1600 Controllers
Features & Benefits
Fault review displays all faults, including open and shorted zones
On-board multi-meter displays transformer voltage; milliamp measurement for each zone
Built-in valve locator chatters the solenoids (U.S. Patent No. 7,406,363)
Review menu displays ET deficits by zone , and corresponding zone run times
Review menu displays maximum run time and minimum soak times
Review menu displays temperature readings (daily high/low) for previous 5 days
Review menu accumulates total run times by zone
Programmable rain delay of 1 - 7 days
SLW Weather Station extended rain delay programmable from 0 - 99 hours
Run/Soak cycles allow setting of maximum run time and minimum soak time by program for use in Standard mode only
Programmable zone-to-zone delay 1 min. - 3 hrs.
Programmable master valve timing sequence with "On Delay" (1 sec. - 1 min.; 2 sec. default) and "Off Delay" (1 sec. - 3 min.; 5 sec. default) to allow for line fill and slow-closing valves
Master valve/pump start operation assignable On/Off by zone
Clear program function to selectively delete an individual program
Clear all function to delete all programs
Backtrack stored program feature allows contractor to easily store a default program and retrieve the saved program in the event a customer improperly reprograms the SL4800
Auto Adjust Features
ZIP Code input (5 digit) or Latitude input (+/-60 degrees from EQUATOR) establish location of site for solar radiation calculation
Sprinkler type input allows selection for zone sprinkler type (SPRAY, ROTOR, DRIP, BUBBLER) with preset precipitation rate or specific input of the zone precipitation rate (.2 - 3.0" per hour)
Plant type input allows selection for zone plant type (COOL TURF, WARM TURF, SHRUBS, ANNUALS, TREES, NATIVE) with preset crop factors or specific input of the zone crop factor (10 - 300%)
Input: 120 VAC/60 Hz @ 400 mA for 5 valves
Output: 28 VAC, 1.2A maximum
Fuse: 1.5A, slow blow
Dimensions: 15 in. W x 16-1/2 in. H x 5-7/16 in. D (38.1 cm x 41.9 cm x 13.8 cm)
SLM Module Installation Guide
Additional SLM4 modules may be added to expand capacity to 16 zones or SLM12-1600 to expand capacity to 24 zones. The SL1620 has 20 fixed zones. The SLM4 and SLM12- 1600 module is useable only on the SL1600.
The SL1600 controller will automatically recognize the additional zones as they are installed. No special programming or resetting is required to initialize the modules.
You can insert or remove a module without removing power from the controller
To install a module, push the module into the channels until you feel it lock in place. To remove a module, push DOWN on the center release panel on the top of the module and use the top tab to pull it out.
Note: Modules must be inserted in the sequence of numbered zones. Do not leave any gaps in module positions.
