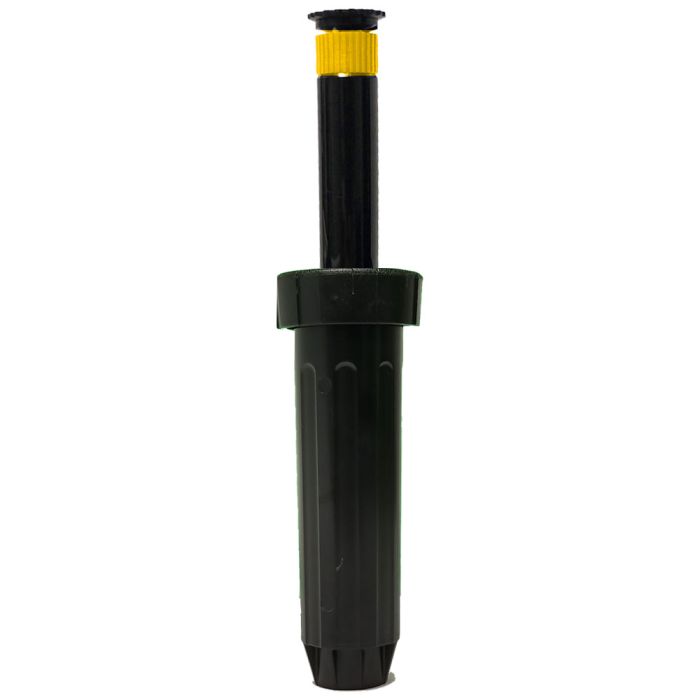

Weathermatic Spray Head with Adjustable Arc Nozzle with LXAAN8A 4 in. | MAX4-AAN8A

SKU
MAX4-AAN8A
Sales Price $2.25 Our Price $4.90 You save 54%
Add to Project Add to Favorites Compare

*XX-Large are an additional $1.00

Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020; California: October 1, 2020; Colorado: January 1, 2021; Hawaii: January 1, 2021; Washington: January 1, 2021; Massachusetts: January 1, 2022; Washington, D.C.: March 15, 2022; Rhode Island: January 1, 2023; Oregon: January 1, 2023; New Jersey: January 1, 2023; Maine: January 1, 2023; New York: June 26, 2023; Maryland: January 1, 2024

Weathermatic MAX4 4" Pop-Up Spray Head

MAX Sprayhead Features

  • Flush Plug has low profile design for easy pull up and level installation
  • Flat cap allows for level installation and customized labeling
  • Industry standard white Santoprene material and a Dual Pressure Activated design for a first in the industry stem AND cap seal
  • Innovative non-slip two-piece ratchet ring for easy adjustment even when wet.
  • Ultra-low flushing enables 5 PSI sealing
  • Compatible with all industry-standard female thread nozzles
  • 5-Year Trade Warranty

Features / Benefits

  • Easy grip-and-turn adjustment
  • Exceptional uniform coverage
  • Maintains matched precipitation rates between arcs within a radius
  • Stainless steel radius adjustment screw
  • Reusable, dual compartment resealable bags
  • Five-year trade warranty.

Applications

  • For use with all MAX Series spray heads
  • Fits all industry-standard spray heads with male thread risers

Operating Data

  • Precipitation rate: 1.18 - 5.74 in. per hour
  • Pressure: 20 - 40 PSI
More Information
Brand Weathermatic
Product Type Spray Heads
Nozzle Connection Female Nozzles
PSI 15 - 70 PSI
Side Inlet No Side Inlet
Inlet Size 1/2 in.
Spray Body Height (in.) 6 - 1/4 in.
Check Valve No Check Valve
Spray Head Spring Stainless Steel
Nozzle Installed LXAAN8A
Spray Head Wiper Seal Dual Pressure-Activated
Non-Potable Potable
Pressure Regulation No Pressure Regulation
Application Residential and Commercial
Warranty 5 Years
Pop-Up Height 4 in.
Advanced Features Potable, Nozzle Pre-Installed
Series MAX4 Bundles
