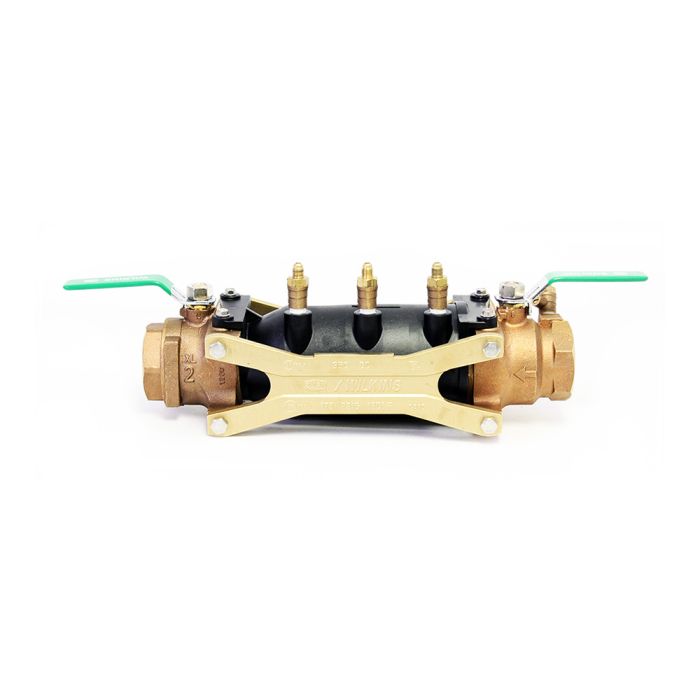

Wilkins 350FT DCA Backflow Preventer with SAE Male Test Cocks 2 in. FPT | WK350FT-200

Designed for installation on water lines to protect against both back-siphonage and backpressure of polluted water into the water supply. Assembly shall provide protection where a potential health hazard does not exist.

Feature & Benefits

• Maximum working water pressure: 175 PSI
• Maximum working water temperature: 180 F
• Hydrostatic test pressure: 350 PSI
• End connections Threaded: ANSI B1.20.1

Specifications

• The Double Check Valve Backflow Preventer shall be ASSE Listed 1015, rated to 180F, and supplied with full port ball valves.
• The main body shall be Bronze for sizes 3/4" & 1", and nylon for sizes 1-1/4" to 2".
• The housing shall be reinforced Nylon and the seat disc elastomers shall be silicone (FDA Approved).
• The first and second checks shall be accessible for maintenance without removing the device from the line.
• The Double Check Valve Backflow Preventer shall be a WILKINS Model 350.

Standards Compliance (Horizontal & Vertical)

• ASSE Listed 1015
• IAPMO Listed
• CSA Certified B64.5
• Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
• UL Classified (fewer shut-off valves only)
• C-UL Classified (fewer shut-off valves only)

Materials

• Main valve body: Cast Bronze, ASTM B 584 (3/4-1")
• Housing: Reinforced Nylon
• Fasteners: Stainless Steel, 300 Series
• Elastomers:
  • Silicone (FDA Approved)
  • Buna Nitrile (FDA Approved)
• Internals:Delrin, NSF Listed
• Springs: Stainless Steel, 300 series
• Ball Valves: Cast Bronze, ASTM B 584
• Struts: Forged Brass ASTM B 124

Typical Installation

Local codes shall govern installation requirements. To be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code. Unless otherwise specified, the assembly shall be mounted at a minimum of 12" (305 mm) and a maximum of 30" (762mm) above adequate drains with sufficient side clearance for testing and maintenance. If installed below grade, be certain adequate drainage is provided to prevent the device from being submerged.
