0.8 GPH Micro Fogger 10/32 (5 ct.) | 07-047-B05

SKU

07-047-B05

Sales Price $9.10 Our Price $10.95 You save 17%

Overview

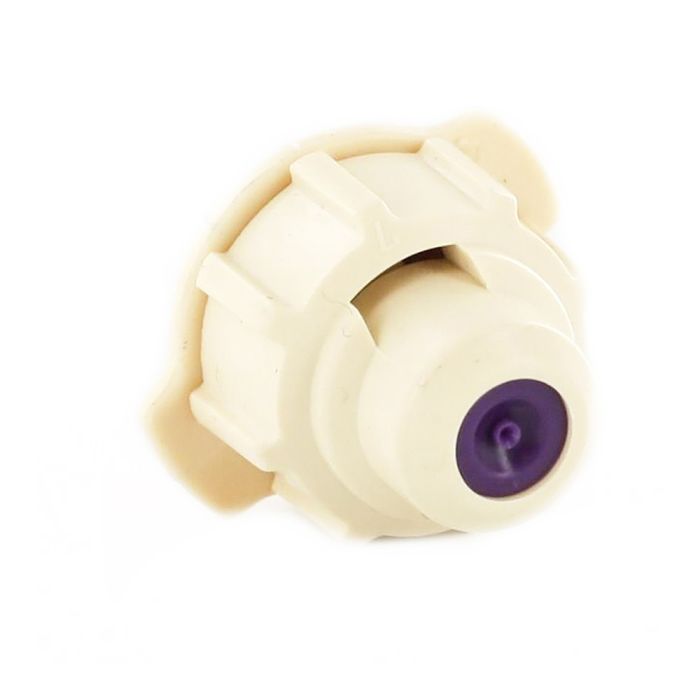

0.8 GPH Micro Fogger 10/32

Per Bag: 5 ct.
Size: 10/32
Flow Rate: 0.8 GPH
Threaded connection

Features & Benefits

Full circle foggers, also known as misters, that can operate in a wide pressure range of 40 to80 PSI with flow rates of .7 to .8 GPH. The foggers can create a cooling effect; often up to a 20 ½ drop in temperature is achieved with this system, depending on the surrounding humidity. Use this system for the cooling of animals, people, and plants. We recommend installing the misting nozzles 8' to 10' above the ground with 3' to 4' spacing for maximum cooling effect.

Product Details

Incorporates a vortex design, which spins the water droplets into a fine mist
Modular, lightweight and easy to install, maintain and configure
Designed without a bridge to prevent dripping
Three-part construction with "O" ring for a tight seal
Flow Rates: .8-3 GPH
Operating Pressure: 35-80 PSI
Wetting Diameter: up to 4'
Trajectory: 80-100 degrees
Available with 1/2" MNPT thread or 1/4" barbed side outlet
Average Droplet Size: 60-100 microns
Filter Requirement: 200 Mesh
Body: Polyacetal
"O" Ring: Buna-N

How to Specify

Model	Description	Color
07-044	0.8 GPH with barb	Purple
07-045	1.0 GPH with barb	Black
07-046	1.5 GPH with barb	Green
07-047	0.8 GPH on 10/32″ thread	Purple
07-048	1.0 GPH on 10/32″ thread	Black
07-052	2.0 GPH with barb	Brown
07-054	3.0 GPH on 10/32″ thread	Gray
