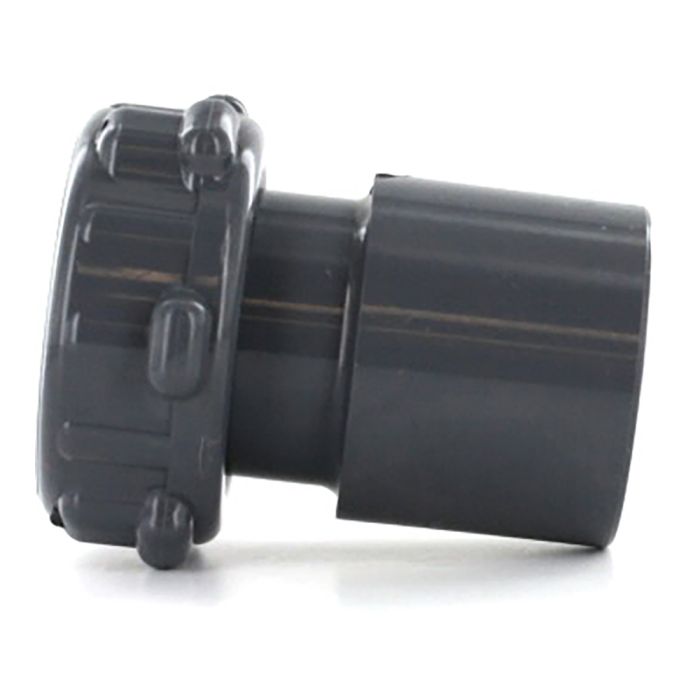

This 1-1/4" Spigot x 1" Slip Adapter is used to provide a connection into or out of the manifold for either 1" or 1-1/4" PVC pipe . To connect PVC pipe either slip a 1-1/4" fitting (pvc coupler) over the 1-1/4" spigot or slip 1" pvc pipe into the spigot which serves as a 1" slip adapter on the MS-125X100.
The valve manifolds are designed to connect double; triple; or quadruple manifolds together using a MS series coupling to make larger manifolds if needed.
Overall Description of the 1" Half Union Manifold System
Half union fittings and adapters mate with manifold pieces to build a quality 1" manifold system for quick and convenient installations.
Tight o-ring seals eliminate leakage.
Variety of outlets; adapters; and couplings offered for different size PVC and poly pipe.
Size: SCH80
Color: Gray
Operating pressure up to 235 psi at 73F (23C)
| Part/ SKU | Description |
| MS-DM | double manifold with M Buttress Threads |
| MS-TM | triple manifold with M Buttress Threads |
| MS-QM | quadruple manifold with M Buttress Threads |
| MS-MA | male adapter |
| MS-FA | female adapter |
| MS-NIP | male NPT x buttress nipple |
| MS-FNIP | female NPT x buttress nipple |
| MS-CAP | cap with F Buttress Threads |
| MS-CPLG | coupling |
| MS-125x100 | 1" spigot x 1" slip adapter |
| MS-100x075 | 1" spigot x 3/4" slip adapter |
| MS-100IA | 1" insert adapter |
| MS-075IA | 3/4" insert adapter |
Articles
Videos
| Brand | Action Machine |
|---|---|
| Product Type | Premium Manifold Fittings |
| Warranty | 1 Year |
| Size | 1 in. |
