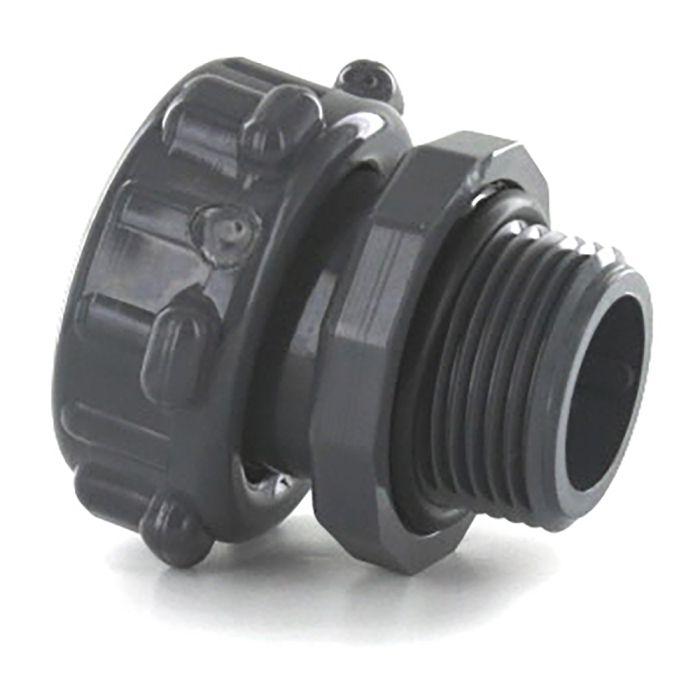

Action Machine Manifold Part 1 in. Female Buttress x MNPT | MS-MA

• Action Machine Manifold
• Female Buttress Thread x Male National Pipe Thread
• Size: 1 inch

Features & Benefits

This adapter is used to connect a valve with a Female Thread Inlet to the valve manifold. The F Buttress side of this adapter connects to the valve manifold. The M NPT side of this adapter screws into the female threads of a valve which has a 1" fpt (female pipe thread) inlet. An example of a valve used with this adpater is the Rain Bird 100-DVF or the Hunter PGV-101G

The valve manifolds are designed to connect double; triple; or quadruple manifolds together using a MS series coupling to make larger manifolds if needed.

Overall Description of the 1" Half Union Manifold System

• Eliminate leaks and the problems with servicing valves by building manifolds from this high-quality manifold system.
• Half union fittings and adapters mate with manifold pieces to build a quality 1" manifold system for quick and convenient installations.
• Tight o-ring seals eliminate leakage.
• Variety of outlets; adapters; and couplings offered for different size PVC and poly pipe.
• Size: SCH80
• Color: Gray

Product Details

• Operating pressure up to 235 psi at 73F (23 C)

Models

• MS-DM: double manifold with M Buttress Threads
• MS-TM: triple manifold with M Buttress Threads
• MS-QM: quadruple manifold with M Buttress Threads
• MS-MA: male adapter
• MS-FA: female adapter
• MS-NIP: male NPT x buttress nipple
• MS-FNIP: female NPT x buttress nipple
• MS-CAP: cap with F Buttress Threads
• MS-CPLG: coupling
• MS-125x100: 1 1/4" spigot x 1" slip adapter
• MS-100x075: 1" spigot x 3/4" slip adapter
• MS-100IA: 1" insert adapter
• MS-075IA: 3/4" insert adapter
