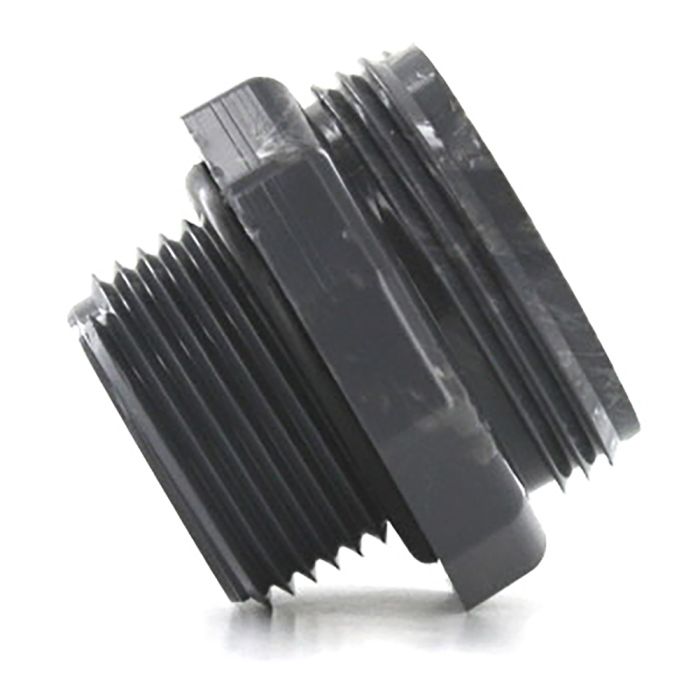

MS-NIP: M Buttress x M NPT Threads
This adapter is used to connect a valve with a Female Thread Outlet to the F Buttress of a MS Manifold System adapter such as one of the following: MS-100x075; MS-125x100; MS-075IA; or MS-100IA.
This adapter allows you to attach the MS Manilfod Adapter of your choice to the outlet of a 1" fpt valve. An example would be as follows: screw the MS-NIP into the 1" fpt outlet of a valve then attach the MS-100IA to make a 1" barb outlet on the valve to connect to 1" poly pipe.
Or screw the MS-NIP into the 1" fpt outlet of a valve then attach the MS-125x100 adapter to make a 1-1/4" or 1" slip outlet on the valve to connect to 1-1/4" or 1" PVC pipe.
The valve manifolds are designed to connect double; triple; or quadruple manifolds together using a MS series coupling to make larger manifolds if needed.
Overall Description of the 1" Half Union Manifold System
Eliminate leaks and the problems with servicing valves by building manifolds from this high-quality manifold system.
Tight o-ring seals eliminate leakage.
Variety of outlets; adapters; and couplings offered for different size PVC and poly pipe.
Size: SCH80
Color: Gray
Manifold System Parts Explained
Part/ SKU | Description |
MS-DM | double manifold with M Buttress Threads |
MS-TM | triple manifold with M Buttress Threads |
MS-QM | quadruple manifold with M Buttress Threads |
MS-MA | male adapter |
MS-FA | female adapter |
MS-NIP | male NPT x buttress nipple |
MS-FNIP | female NPT x buttress nipple |
MS-CAP | cap with F Buttress Threads |
MS-CPLG | coupling |
MS-125x100 | 1 1/4" spigot x 1" slip adapter |
MS-100x075 | 1" spigot x 3/4" slip adapter |
MS-100IA | 1" insert adapter |
MS-075IA | 3/4" insert adapter |
Articles
Videos
Brand | Action Machine |
---|---|
Product Type | Premium Manifold Fittings |
Warranty | 1 Year |
Size | 1 in. |
Connection | M Buttress x MIPT |
