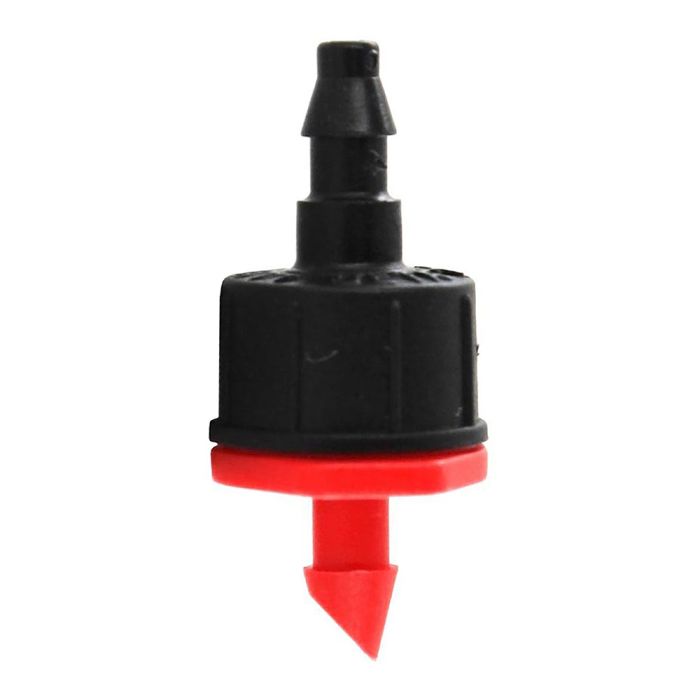

Antelco 0.5 GPH Pressure Compensating Emitter .16 in. | A30545

Name: Antelco 0.5 GPH Pressure Compensating Emitter .16 in. | A30545
Brand: Antelco
SKU: A30545
Price: 0.39 USD
Availability: InStock

SKU

A30545

Sales Price $0.39 Our Price $0.66 You save 41%

Overview

Antelco 0.5 GPH Pressure Compensating Emitter .16 in.

Operating PSI: 5 - 50 PSI
Size: .16 in.
Flow Rate: 0.5 GPH

Features & Benefits

A take-apart Pressure Compensating dripper incorporating a turbulent flow path and diaphragm for uniform flow rates over a wide range of operating pressures.

Low manufacturing coefficient of variation (Cv) provides high performance
(conforms to ISO 9261).
Three color-coded and stamped flow rates - 1/2 gph, 1 gph, and 2 gph.
Large clog-resistant turbulent flow path.
The CETA dripper is able to be taken apart for inspection and cleaning
Self piercing inlet barb with a built-in filter.
Insect Baffle to deter insect entry.
0.16" barb outlet with 1/2 gph flow
Constructed of high-quality UV and chemical-resistant materials.
Self-flushing action with insect baffle to minimize blockages

Applications: Vineyards, orchards, row crops, and landscape.

Product Details

Performance Chart

Pressure (psi)	Flow (gph)	Flow (gph)	Flow (gph)
	Red 1/2 gph	Black 1 gph	Green 2 gph
5	0.41	0.76	1.47
10	0.51	0.92	1.80
15	0.54	1.00	2.08
20	0.57	1.07	2.08
25	0.59	1.12	2.11
30	0.61	1.15	2.13
35	0.61	1.17	2.14
40	0.61	1.16	2.13
45	0.60	1.15	2.11
50	0.59	1.13	2.07
