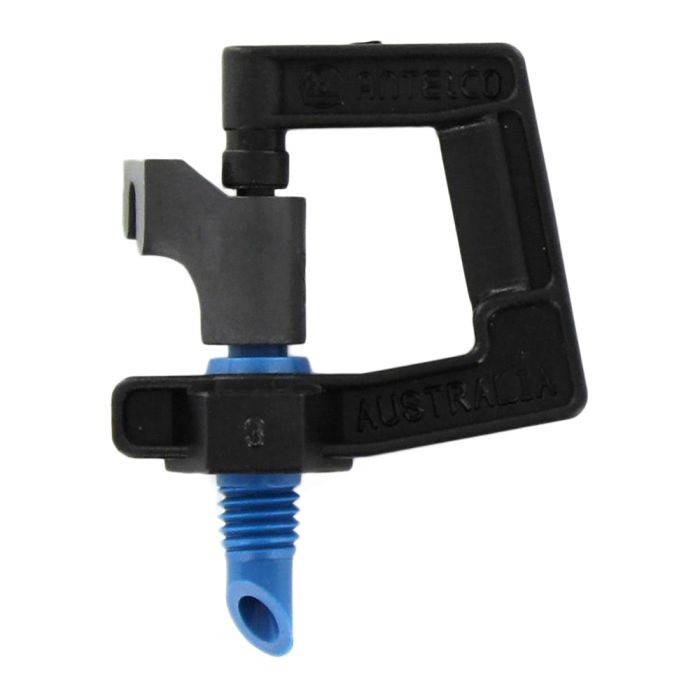

Antelco Blue 11.7 GPH Rotor Spray 10/32 | A20015

• Size: 10/32
• Color: Blue
• Flow Rate: 11.7 GPH

Features & Benefits

Durable and reliable with excellent distribution uniformity. Vari-Rotor Spray™ can be adjusted to alter flow and coverage.

• ‘C’ Frame design for strength and high distribution uniformity.
• Full flow flipper suspended between two bearings for reliable performance.
• The inverted model incorporates a special khaki-colored flipper with a dust cover to protect the bearing.
• Six color-coded nozzles to identify flow rates.
• 0.16" thread for installing into Rigid Risers, tubing & 1/2" threaded adapters.
• UV stabilized materials for long life.

Applications

Landscape areas, home gardens, nurseries, and horticultural applications. Inverted Rotor Spray ideal for overhead greenhouse and nursery watering.

Product Details

1. Finish grade or top of the mulch
2. Plant material (shrub or ground cover)
3. Clean soil, amended/native free of rock and debris
4. Vari-rotor sprays 10-32 unf thread. Mount of PVC riser
5. Adapter 1/2" FNPT x 10-32 thread
6. Lateral line pipe
7. Tee/Elbow, PVC SCH40, size as required
8. PVC SCH 80 Riser, threads both ends, length as needed.

Note: Set zone pressure to 30 PSI. adjust rotor spray diameter as needed
