Champion Compact Actuator Rebuild Valve Repair Kit | RK-17C

For compact actuators manufactured before 2017, with the manufactured date code on the top between the screws, the diagram shows part breakdown

• Brand: Champion

• Type: Compact Actuator Rebuild Valve Repair Kit

• Actuator repair kit for 3/4 & 1 in. compact actuators (made before 2017)

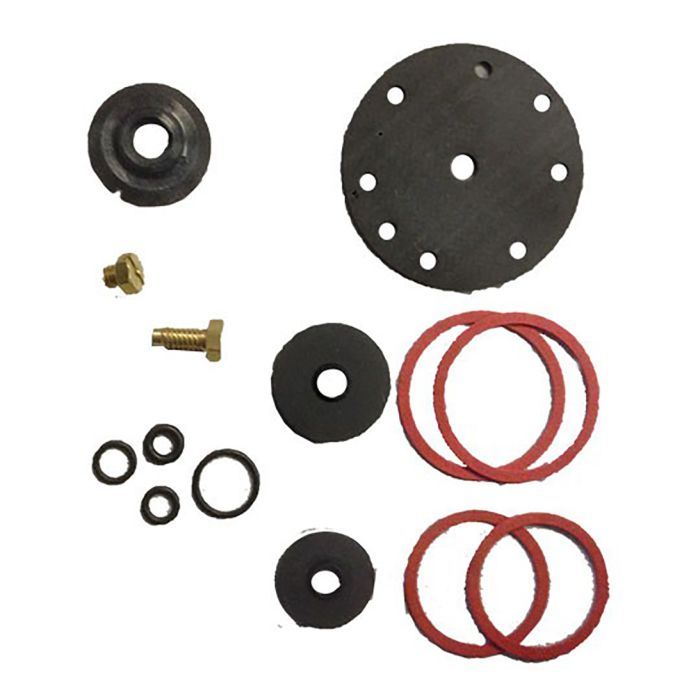

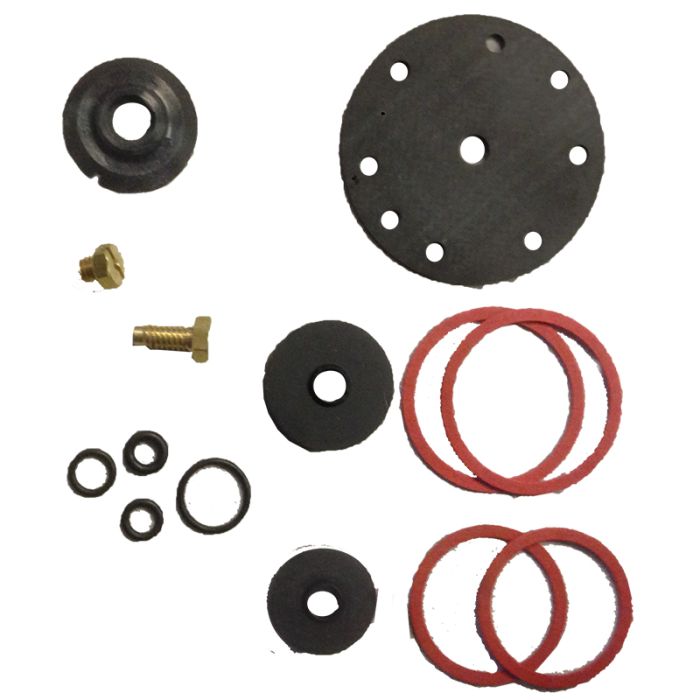

• Includes replacement diaphragm, seat washer, O-rings, red-fiber gaskets, diaphragm screw and the metering screw
• Flat diaphragm with 9 holes
• Length of diaphragm: 2-1/2 in.

Repair Parts / How to Specify

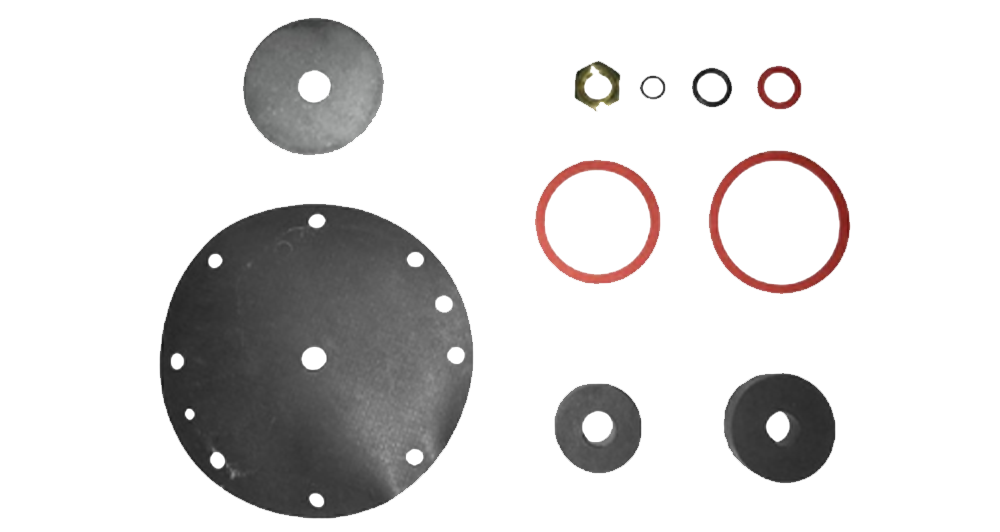

Part Number	Description	Image

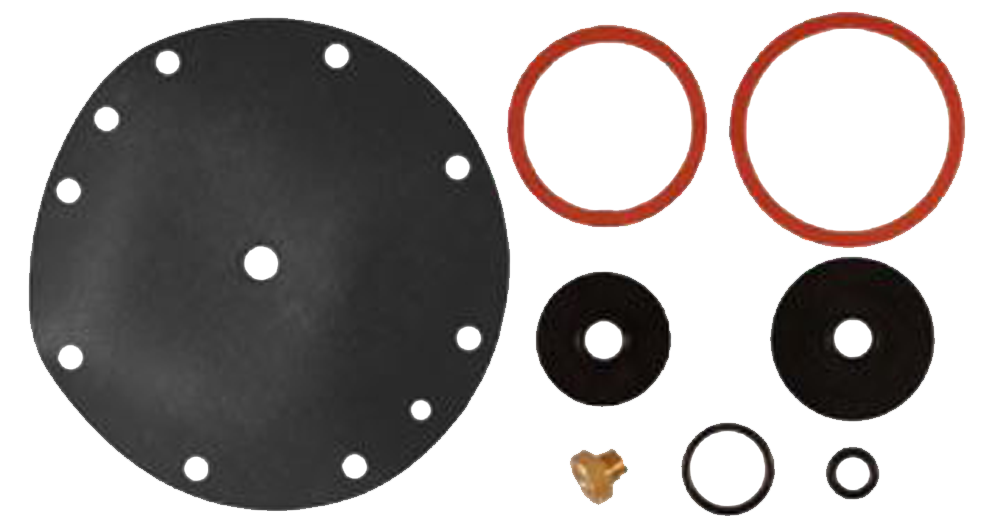

RK-25C	Classic Actuator Rebuild Kit- Pre 2004 Models
RK-26C	Classic Actuator Rebuild Kit- Models installed after 2004 through 2016

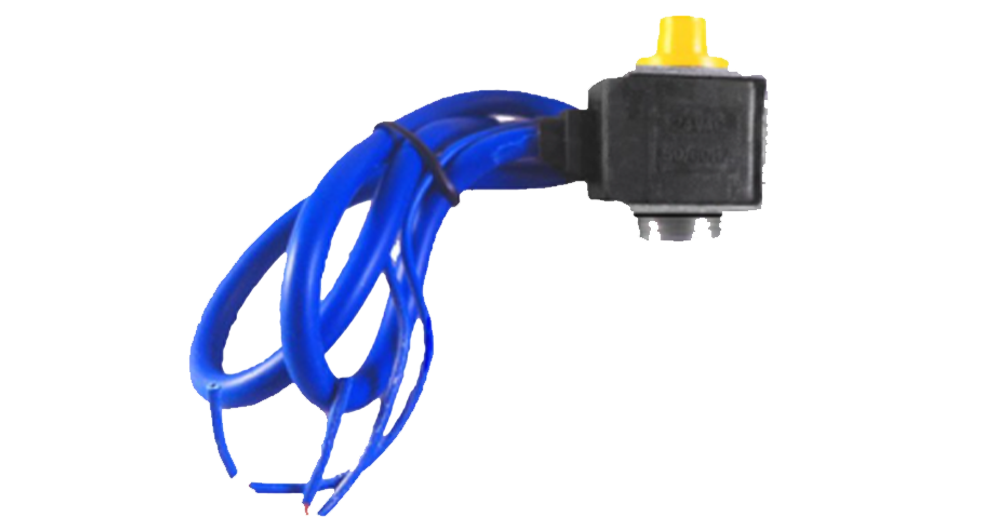

RK-28C	Replacement 24VAC Solenoid for Champion Automatic Valves

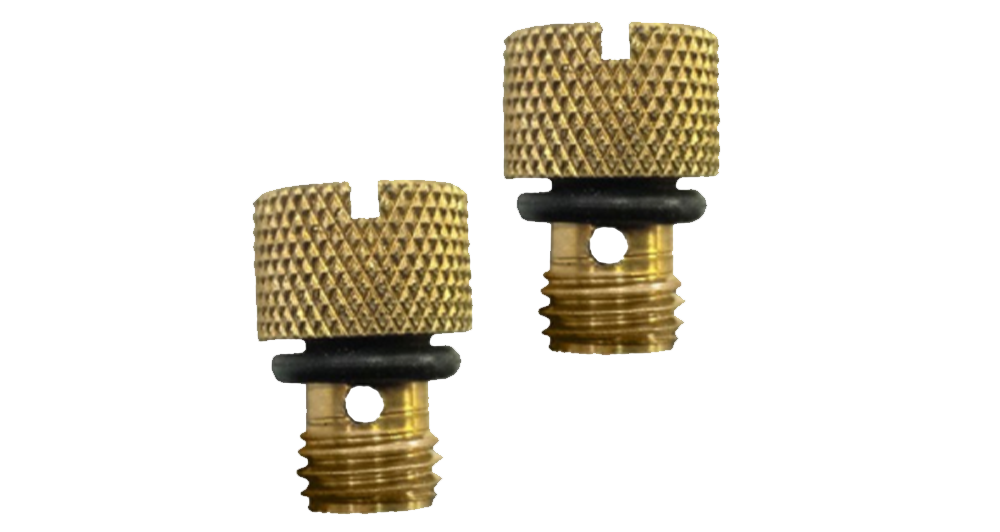

RK-29C	Replacement Brass Bleed Screws- two-pack
RK-38C	Classic Actuator Rebuild Kit (2016 - current models)

*Valve image is included to help with identification. Valves are NOT included with valve parts.
