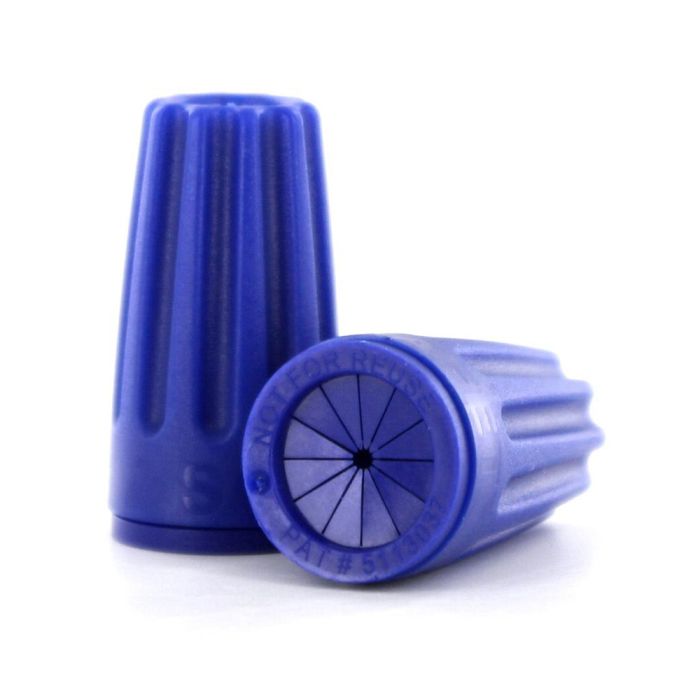

King Innovation Waterproof Small Wire Connectors (100 ct.) | 10241-100CT

Name: King Innovation Waterproof Small Wire Connectors (100 ct.) | 10241-100CT
Brand: King Innovation
SKU: 10241-100CT
Price: 103.25 USD
Availability: InStock

SKU

10241-100CT

Sales Price $103.25 Our Price $140.95 You save 27%

Used in direct bury applications, this waterproof and corrosion-proof connector saves money and time with its patented one-step installation, bypassing unnecesary pre-twisting. Each connection comes prefilled with dielectric silicone sealant to ensure it never hardens.

100 connectors per order
Max Voltage: 600 V max. building wire, 1000 V max. signs or luminairies
For use in direct bury applications when operating at 30 V or less

Overview

Quick Facts

Connector Size: 17/32 in. x 15/16 in.
Wire Type: Copper/Copper
Wire Range: Min #22/Max #12
Temperature Rating: 221°F (105°C)
Silicone Sealant: -45°F to 400°F
UL Listed 600 V for dry, wet, or above/below grade applications when used in an enclosure

Installation Instructions

Important! Shut off the power before installing or removing the connector.
Strip wires 3/8 in. except #16 and smaller. Strip wires 7/16 in.
Hold stripped wires together with ends of insulation evenly, leading stranded wires slightly.
Align any frayed strands or conductors.
Firmly push the wire into the connector and screw the connector clockwise onto the wire until secure.

Warranty

1 Year

(A) 0.9 in. (B) 0.3 in. (C) 0.5 in. (D) 0.4 in.

Specs

More Information
Brand	King Innovation
Product Type	Waterproof Wire Connectors
Max Voltage	600V Building, 1000V Signs or Luminaries
Temperature Range	-45 - 400°F
Temperature Rating	221°F
Wire Range	Min #22/Max #12
Warranty	1 Year
Size	Small
