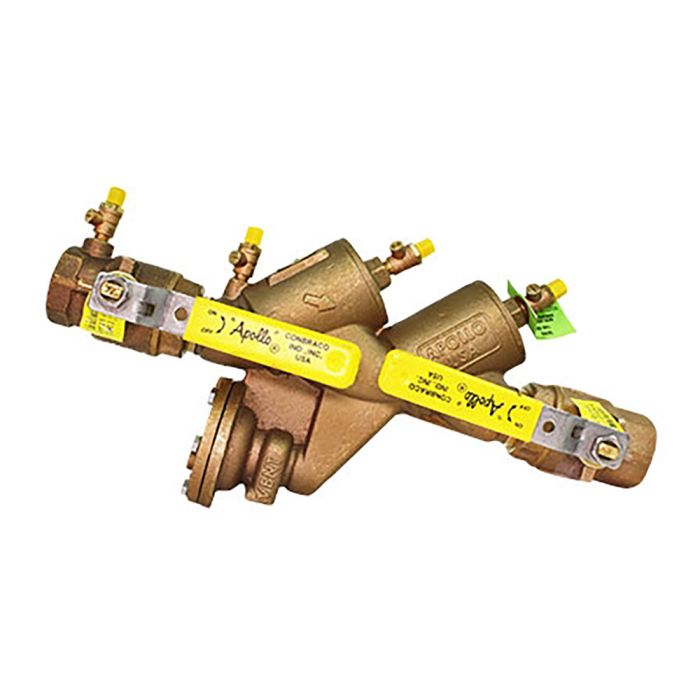

Conbraco 4A-200 RPZ Backflow Preventer 2 in. Union End Ball Valve | CDC4A-208-A2F

Name: Conbraco 4A-200 RPZ Backflow Preventer 2 in. Union End Ball Valve | CDC4A-208-A2F
Brand: Conbraco
SKU: CDC4A-208-A2F
Price: 893.95 USD
Availability: InStock

SKU

CDC4A-208-A2F

Sales Price $893.95 Our Price $1,670.99 You save 47%

Overview

Maximum protection against backpressure/backsiphonage
Removable discs
Internal sensing passage
Designed for easy maintenance
Low head loss
Economical
Corrosion resistant
Comes standard with Apollo full port ball valves with steel handles*
Maximum working pressure 175 psig
Operating temperature range 33 degrees F-180 degrees F
Replaceable seats
Test cock dust covers standard
Designed, manufactured, assembled and tested in South Carolina, USA
* 3/4" - 1" : Tee Handles 1-1/4" - 2" : Lever Handles
Conbraco Industries, Inc. continues to operate as Apollo Valves

Maximum Working Pressure 175 psi
Hydrostatic Test Pressure 350 psi
Temperature Range 33 degrees F - 180 degrees F

CONBRACO REDUCED PRESSURE ASSEMBLIES:

The Conbraco Series 40-200 Reduced Pressure Principle Backflow Preventer is designed to give maximum protection against backflow caused by either back-pressure or back-siphonage.

The durable, but economical, device is easily maintained in the line without any special tools. It consists of two independently acting spring-loaded check valves with an automatic differential relief valve located between the check valves. The diaphragm and the sensing passage are built into the all bronze body to eliminate possible damage. Three of the testcocks are mounted at the top to assure easy access during repair and maintenance when unit is installed in tight places.

CONBRACO REDUCED PRESSURE ASSEMBLY MODELS:

Conbraco CDC40-204-T2 - 3/4" Reduced Pressure Assembly
Conbraco CDC40-205-T2 - 1" Reduced Pressure Assembly
Conbraco CDC40-207-T2 - 1-1/2" Reduced Pressure Assembly
Conbraco CDC40-208-T2 - 2" Reduced Pressure Assembly

CONBRACO REDUCED PRESSURE ASSEMBLY REPAIR PARTS:

Conbraco CDC40-007-A1 1-1/2" - 2" Major Repair Kit

"Backflow preventers are installed in the irrigation system to protect our drinking water, save lives and prevent illness."

Spec Sheet

Specs

More Information
Brand	Conbraco
Product Type	Reduced Pressure Zone Assemblies (RPZ)
Test Cocks	4 FEMALE
Max Working Pressure	175 PSI
Hydrostatic Test Pressure	350 PSI
Temperature Range	33F to 180F
Main Valve Body Materials	Bronze
Elastomers	Silicone
Springs	Stainless Steel
Warranty	5 Years
Size	2 in.
Connection	Union End Ball Valves
Lead Free	Not Lead Free
