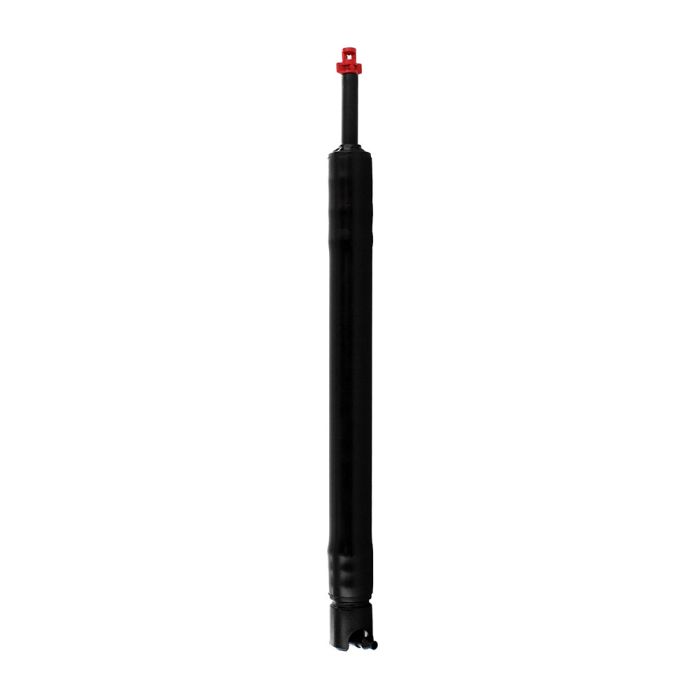

DIG 0.15 - 0.63 GPH 360 Micro Pop-Up 1/4 in. x 8 in. | MP-806

SKU

MP-806

Overview

DIG 0.15 - 0.63 GPH 360 Micro Pop-Up

Size: 1/4 in.
Spray Pattern: 360 Degrees
Size: 1/4 in. x 8 in.

Features & Benefits

The MP series pop-up micro sprayers are designed to provide solutions where low pressure and low flow-rate nozzles are required. Pop-ups are helpful where conventional sprinkler systems or drip irrigation would not be practical. The MP series utilizes double seals to ensure reliable operation and long-term performance.

The unique design incorporates a pressure activated, low friction, upper stem seal, and a second stage piston seal to ensure positive sealing
8" pop-up length with 1/4" (4 mm) barbed elbow
Can be used with all sizes of polyethylene tubing using the 1/4" barbed elbow option

Product Details

Flow Rate: .15-.63 GPM
Operating Pressure: 15-30 PSI
Nominal Operating Pressure: 30 PSI
Wetting Diameter: up to 5'
Precipitation Rate: .30-1.26 inch/h
Inlet Size: 1/4" barbed side inlet
Filter Requirement: 120 mesh minimum
Color-coded spray nozzles for easy identification
Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
Second stage piston seal ensures sealing
Full circle spray nozzle
