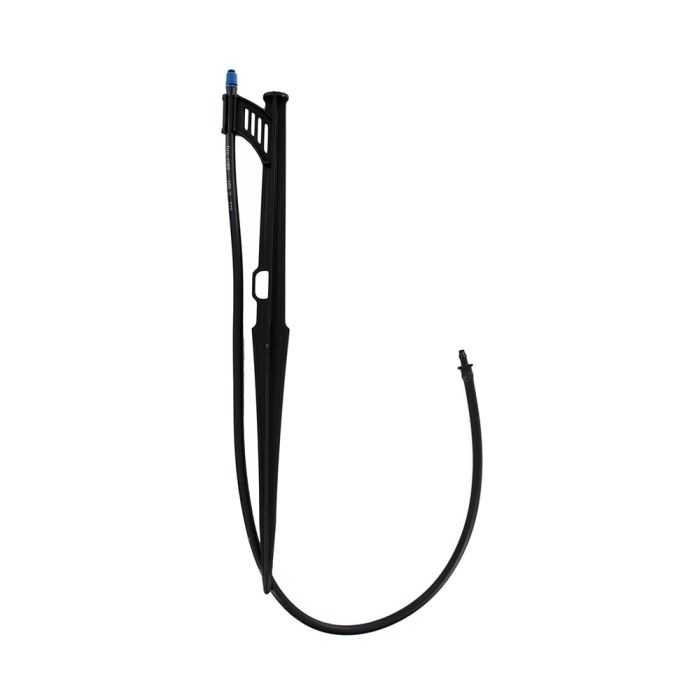

Ideal use for this model is for ground cover, flower beds, and shrubs. The 10/32 thread models can be installed on the 1/2" poly tubing, using#58, semi-rigid riser with barb, or raised above the ground with a #68, spike assembly.
Flow Rate vs. Pressure
| 360 Degrees | 180 Degrees | 90 Degrees | ||
| Pressure PSI | Flow GPH | Diameter | Radius FT | Radius FT |
| 15 | 10.5 | 15.2 | 5.9 | 6.6 |
| 20 | 12.0 | 16.9 | 6.4 | 7.6 |
| 25 | 13.4 | 18.4 | 6.9 | 8.5 |
| 30 | 14.7 | 19.8 | 7.3 | 9.3 |
Articles
Videos
| Brand | DIG |
|---|---|
| Product Type | Jet Sprayers |
| Operating PSI | 15 - 30 PSI |
| Warranty | 3 Years |
| Flow Rate | 14 GPH |
| Length | 12-1/2 in. |
| Spray Pattern | 180 Degrees |
