DIG 155 Mesh Flush Cap Polyester Screen Filter 3/4 in. | P09-155

In stock
SKU
P09-155
Free Shipping on Orders over $149
Sales Price $8.95 Our Price $13.35 You save 33%

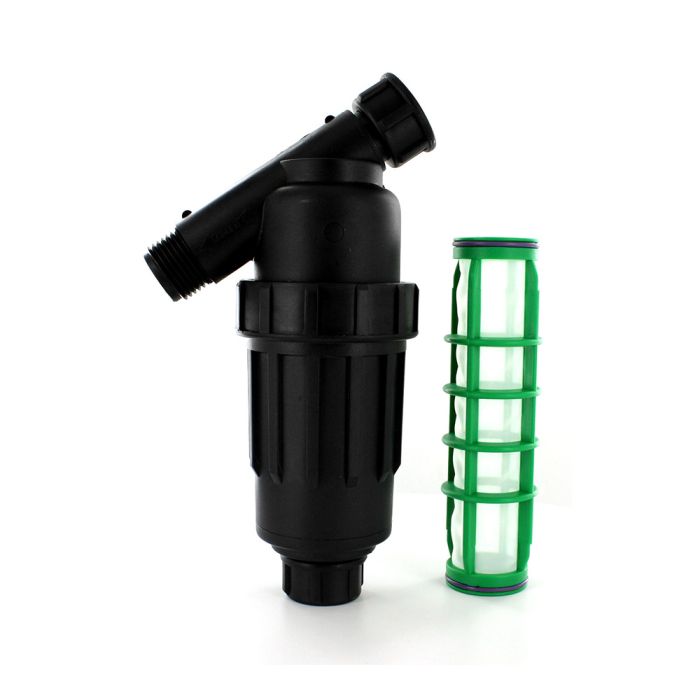

DIG 155 Mesh Flush Cap Polyester Screen Filter 3/4 in.

  • Connection: 3/4 in. FHT x MHT
  • Flow Capacity: up to 18 GPM
  • Max Temperature (°F): up to 130

Features & Benefits

Use for residential and commercial applications. The filter has a pressure rating of up to 120 PSI. Simple and easy to operate, the filters provide reliable, low-maintenance filtration for trouble-free operation.

  • Low friction loss
  • Screens have excellent resistance to most common chemicals
  • Color-coded replacement screens
  • Available with flush cap
  • Easy maintenance: screen can be extracted from the filter for easy cleaning
  • Non-corrosive materials
  • Interchangeable screen and disc elements with a wide range of filtration degrees
  • Operating Pressure: up to 120 PSI
  • Temperature Range: up to 130 degrees
  • MNPT inlet and outlet or FHT x MHT
More Information
Brand DIG
Max Temperature (°F) up to 130
Flow Capacity up to 18 GPM
Max PSI 120
Inlet Connection 3/4 in. FHT
Outlet Connection 3/4 in. MHT
Warranty 3 Years
Specifications (178.15 kB)
