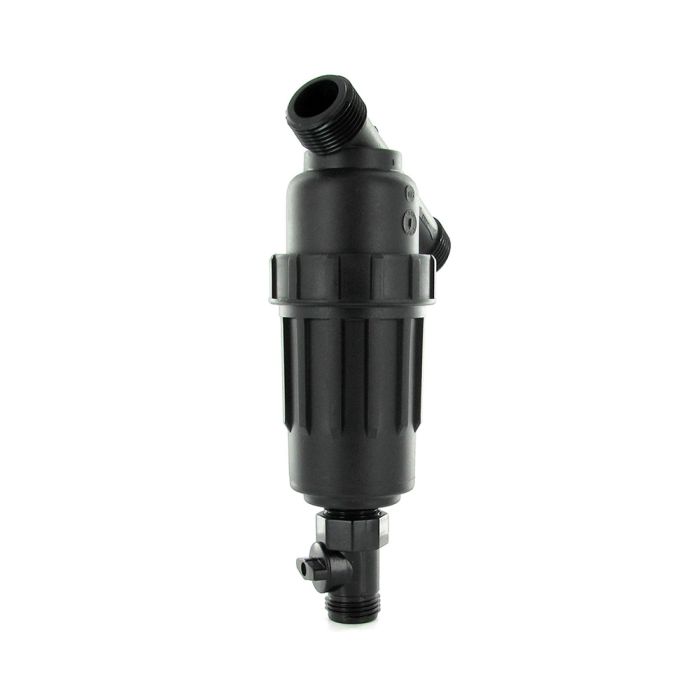

DIG 155 Mesh Flush Valve Stainless Steel Screen Filter 1 in. | P19-155

• Size: 1 in.
• Connection: MNPT
• Max PSI: 120

Features & Benefits

• Used for residential and commercial applications. Simple and easy to operate, the filters provide reliable, low-maintenance filtration for trouble-free operation.
• Low friction loss
• Screens have excellent resistance to most common chemicals
• Color-coded replacement screens
• Includes flush valve
• Easy maintenance: screen can be extracted from the filter for easy cleaning
• Non-corrosive materials
• Interchangeable screen and disc elements with a wide range of filtration degrees

Product Details

• Operating Pressure: Up to 120 PSI (8.4 BAR)
• Temperature Range: Up to 130 F (54 C)
• 1" MNPT x 1" MNPT
• 155 mesh stainless steel screen

Materials

• Housing: Polypropylene
• O-ring: EPDM

Chemical Resistance

• Acids:
  • Very good resistance depending on concentration and temperature.
  • Excellent resistance to most mineral acids
• Alkali: Limited resistance depending on concentration and temperature
• Excellent resistance to low concentrated lyes. Not recommended for use in highly concentrated lyes
