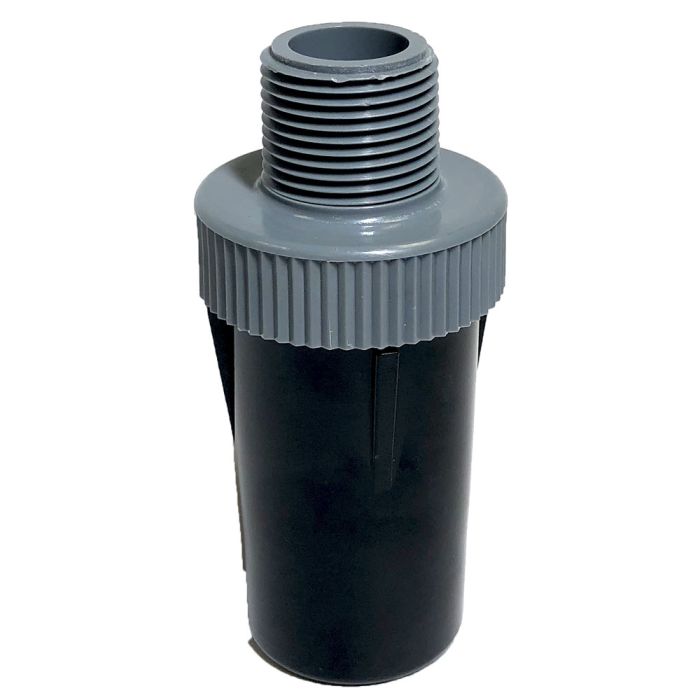

DIG 20 PSI Preset Pressure Regulator 3/4 in. | 18-020

Free Shipping on Orders over $149
Sales Price $8.05 Our Price $14.95 You save 46%

DIG 20 PSI Preset Pressure Regulator 3/4 in.

  • Size: 3/4'' FPT x MPT
  • Flow Rate: 0 - 12 GPM
  • Type: Inline Pressure Regulator

Features & Benefits

DIG’s Heavy Duty Preset Pressure Regulators offer the exceptional performance of pressure control with constant lower downstream pressure regardless of incoming pressure fluctuations. Used to reduce and regulate the water pressure entering a drip irrigation or micro-sprinkler system, this range of pressure regulators can lower the incoming pressure from as high as 120 PSI to a downstream pressure of 20 to 40 PSI at a flow range of .5 to 12 gallons per minute. Utilizing very few moving parts, the pressure regulator’s sophisticated diaphragm design regulates itself in reaction to the overall system backpressure. It is also engineered with industrial-strength, heavy-duty plastic for operation under extreme conditions.

  • Exceptional control of outlet pressure
  • Withstands severe water hammer
  • Utilizes a minimum of moving parts and a diaphragm design that regulates itself in reaction to overall system back pressure
  • Available with 3/4″ female or male outlet
  • Engineered with industrial-strength ABS plastic with all joints sonic welded into a tamper-proof and impact-resistant housing
  • Install above grade (or below grade in a valve box), downstream from the system valve
  • Reliable control of pressure regardless of fluctuations in upstream pressure or flow
  • Regulates itself in reaction to overall system backpressure.
  • Reduces incoming water pressure to the ideal working pressure for a drip system
  • Can be purchased as part of a control zone kit, which provides all the components needed to begin a drip irrigation installation at an affordable price
  • Compact construction of non-corrosive plastic materials

Product Details

  • Flow rate from .5 to 12 GPM
  • Pressure range: 20, 25, 30, 35 & 40 PSI
  • Max. recommended flow rate: 12 GPM
  • Maximum working pressure range: 120 PSI
  • Materials:
    • Body: chemical-resistant ABS plastic
    • Diaphragm: EPDM
    • Spring: stainless steel
  • Inlet 3/4" FIPT (standard)
  • Outlet 3/4" FIPT, 3/4" MNPT or 3/4" Hose Thread
  • Overall length 4.025"
  • Outside diameter 1.845"
More Information
Brand DIG
Flow Rate 0 - 12 GPM
Color Black
Type Inline Pressure Regulator
Warranty 3 Years
Size 3/4 in.
Connection FPT
Specifications (175.04 kB)
