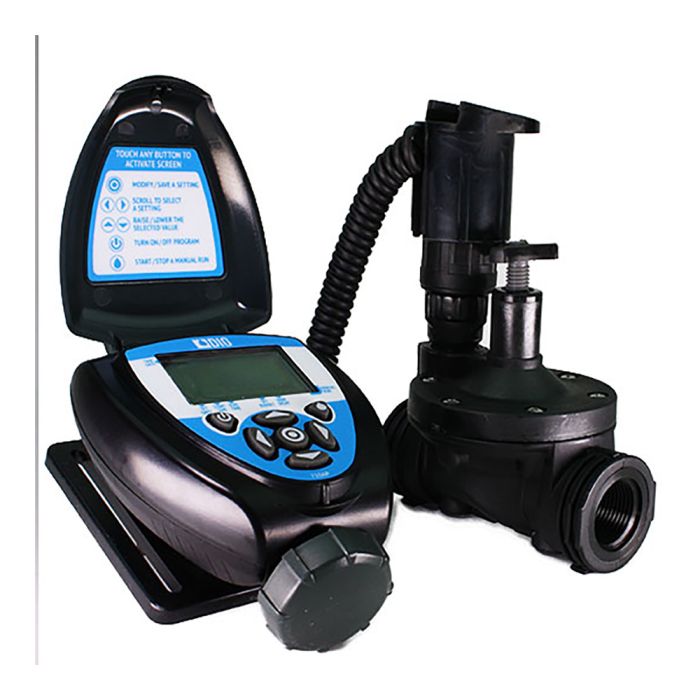

DIG 710AP Battery Operated Propagation Controller with 3/4 in. Valve | 710AP-075

• Zones: 1
• Valve Size: 3/4 in.
• Expandability: Fixed
• Power Source: Battery Operated

Features & Benefits

• Powered by two AA alkaline batteries with a safe period of 60 seconds to replace without losing power.
• Watering flexibility with a selection of watering frequencies including weekly, odd, even, or cyclical between 1 and 30 days, 1 to 12 hours or 1 to 59 minutes.
• Duration can be set in seconds, minutes or hours.
• Interval watering in which a cycle is continuously repeated for a desired period every set interval between a start and stop time. Cycles can be repeated daily or be left running indefinitely.
• Low battery indicator
• Display indicates if irrigation is set to water for the day and if any of the additional programming features are active
• Seven buttons with integrated high resolution screen.
• Simple, icon based intuitive programming and EasyFlow navigation.
• After fifteen minutes the controller screen turns off automatically to conserve energy.
• Semi-automatic and manual operation with timed countdown for shutoff.
• System On/Off button allows the user to turn off the controllers programming and reactivate it as desired as well as to quickly activate or deactivate a propagation program outside of its set start and stop times when used in propagation mode.
• Propagation mode features error catching so that programming mistakes cannot be entered and will automatically update to an allowable entry (run time greater than interval or interval less than run time).
• Retractable coiled cord to the solenoid.
• Brackets for solenoid and wall mounting options are included.
• Utilizes RoHS compliant components.
• Reset option allows erasing of all programs to default settings except date and time.
• Non-volatile memory holds programs indefinitely without batteries except date and time.
• Completely waterproof (IP68).
• Rain sensor connection included.
• Can be mounted on a range of solenoid valves.
• Captured solenoid plunger and spring for easy maintenance.
• Easily retrofits to most manufacturers valves with one of DIGs seven adapters.
• Three year warranty.

Product Details

• Controller type: DC
• Power source: two AA alkaline batteries (not included)
• Controller power input: constant 11 volt
• Seven keypad buttons with integrated liquid crystal display
• Temperature range: 38F to +130F (3C to +54C)
• Latching Solenoid: 7-12 VDC, two-way, normally close
• Solenoid control orifice: .065 (1.65 mm)
• Encapsulated solenoid thread: 11/16 in.-12 UN male thread
• Retractable solenoid wire: 8.1 in. (coiled length when extended, approximately 36 in.)
• Sensor connection: normally closed 6 in. (15 cm) AWM 1007 / 1569 16 AWG 300V VW-1-yellow wire
• Mounting options: solenoid or valve box mounting
• Waterproof (IP68).
  • RoHS compliant

Materials:

• Controller housing: high impact plastic
• Solenoid housing: glass reinforced nylon
• Plunger & spacer: 430F stainless steel
• Plunger rubber cap: EPDM
• O-ring: Buna-N

Programming

• Custom programming schedules with a weekly calendar, odd days, even days, intervals from one to thirty (1-30) days utilizing yearly calendar with leap year or 1 to 12 hours and 1 to 59 minutes.
• Five start times per day in normal mode, one start and stop time per day with watering intervals of every 1 minute to up to 12 hours in propagation mode.
• Duration up to 5 hours and 59 minutes in one-minute increments in normal mode or from 5 seconds to 59 minutes in 1 second increments in propagation mode.
• Monthly seasonal adjustment with option to reduce the program duration setting to 5% of normal or to increase it up to 200% in 5% increments without modifying the controller's program duration in irrigation schedules
• Irrigation suspension for up to 99 days with auto-restart; resumes irrigation automatically
• Program Off button allows the user to turn off the controller and reactivate it as desired as well as to quickly activate or deactivate propagation programs.
• Manual On/Off button opens the valve and utilizes the program run-time to display time left in run. Can be pressed again to quickly shut off the valve.
