Febco U850 DCA Backflow Preventer 1 in. Union End Ball Valve | FEU850-100

SKU

FEU850-100

Sales Price $438.63 Our Price $625.25 You save 30%

Overview

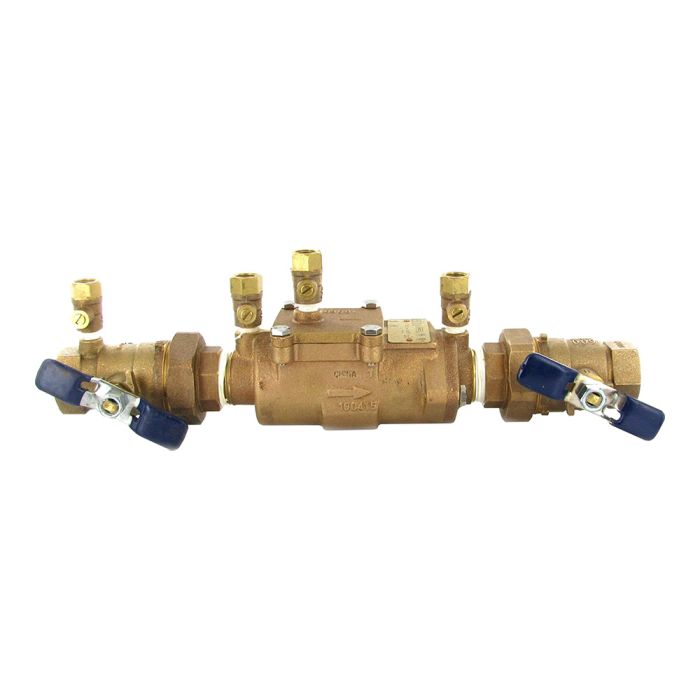

Febco U850-100 1 in. DCA Backflow Preventer w/ Union Ball Valve Ends

Purchase a backflow device with Union Ball Valve ends for easy installation and un-installation to prepare for the winter.

MasterSeries ½ 850U Double Check Valve Assemblies with Union End Ball Valves are designed to prevent the backflow of pollutants that are objectionable but not toxic, from entering into the potable water supply. They feature a bronze body and union threaded ball valve end connections. Maximum Working Pressure: 175psi (12.1 bar). The FEBCO Series 850U Double Check Valve Assemblies are designed for non-health hazard applications. End Connections ½ NPT ANSI/ASME B1.20.1.

Pressure - Temperature

Maximum Working Pressure: 175psi (12.1 bar)
Hydrostatic Test Press: 350psi (24.1 bar)
Temperature Range: 32 ½ F to 140 ½ F (0 ½C to 60 ½ C)

Materials

Valve Body: Bronze
Elastomers: Silicone
Springs: Stainless Steel

Models

Wye - Strainer

Approvals - Standards

ANSI/AWWA Conformance (C510-92)
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
Typical Installation: SERIES 850U 1/2" - 2" (15-50mm) Outdoor Installation

Manual & Literature Specifications Installation Handbook

Specs

More Information
Brand	Febco
Product Type	Double Check Assemblies (DCA)
Test Cocks	4 FEMALE
Max Working Pressure	175 PSI
Hydrostatic Test Pressure	350 PSI
Hydrostatic Safety Pressure	700 PSI
Temperature Range	33F to 140F
Main Valve Body Materials	Bronze
Elastomers	Silicone
Springs	Stainless Steel
Warranty	1 Year
Size	1 in.
Connection	Union End Ball Valves
Lead Free	Not Lead Free
