Febco U850 DCA Backflow Preventer 3/4 in. Union End Ball Valve | FEU850-075

SKU

FEU850-075

Sales Price $300.70 Our Price $480.95 You save 37%

Overview

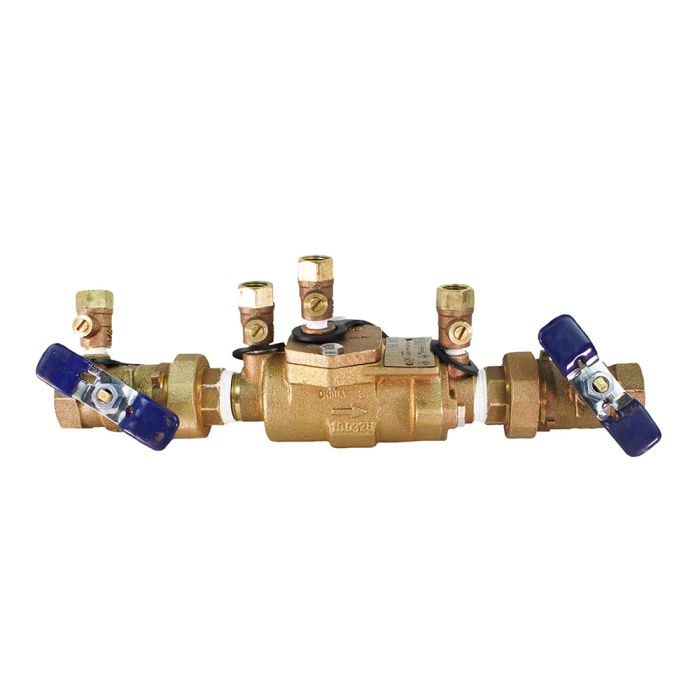

Febco U850-075 3/4 in. DCA Backflow Preventer w/ Union Ball

Purchase a backflow device with Union Ball Valve ends for easy installation and un-installation to prepare for the winter.

The Febco 850 In-Line Design Double Check Valve Assemblies are designed to prevent the backflow of pollutants that are objectionable but not toxic, from entering into the potable water supply. They feature a cast copper silicon alloy body and threaded ball valve end connections. Maximum Working Pressure: 175psi (12.1 bar).

Features / Benefits

Valve Body: Bronze
Elastomers: Silicone
Springs: Stainless Steel

Typical Installation: FE850-075 3/4 inch DCA w/Union Ball Outdoor Installation :

Pressure - Temperature

Maximum Working Pressure: 175psi (12.1 bar)
Hydrostatic Test Press: 350psi (24.1 bar)
Temperature Range: 32F to 140F (0C to 60C)

Models

Wye - Strainer

Approvals - Standards

ANSI/AWWA Conformance (C510-92)
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.

Manual & Literature

Installation Specifications

Specs

More Information
Brand	Febco
Product Type	Double Check Assemblies (DCA)
Test Cocks	4 FEMALE
Max Working Pressure	175 PSI
Hydrostatic Test Pressure	350 PSI
Hydrostatic Safety Pressure	700 PSI
Temperature Range	33F to 140F
Main Valve Body Materials	Bronze
Elastomers	Silicone
Springs	Stainless Steel
Warranty	1 Year
Size	3/4 in.
Connection	Union End Ball Valves
Lead Free	Not Lead Free
