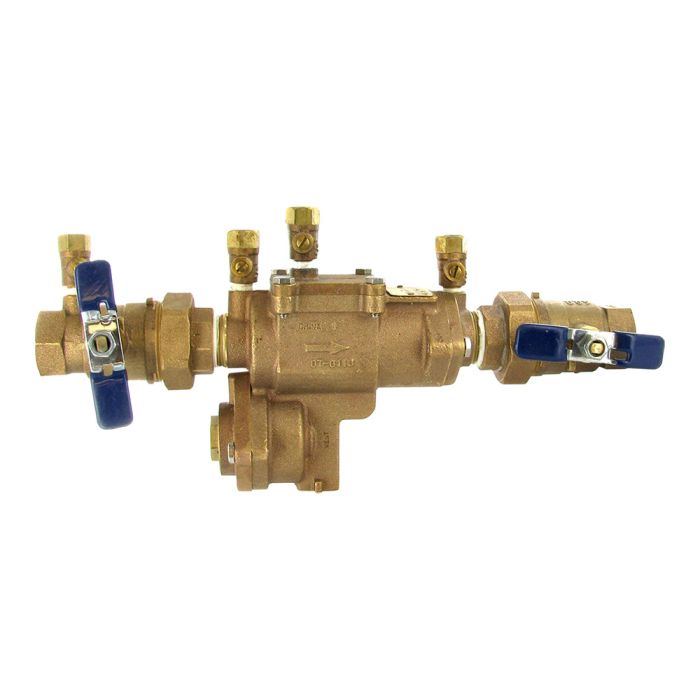

Febco U860 RPZ Backflow Preventer 1-1/2 in. Union End Ball Valve | FEU860-150

SKU
FEU860-150
Free Shipping on Orders over $149
Sales Price $1,258.93 Our Price $1,899.95 You save 34%

FEBCO MASTERSERIES REDUCED PRESSURE ASSEMBLIES WITH UNION END BALL VALVES:

Purchase a backflow device with Union End Ball Valves for easy installation and un-installation to prepare for the winter.

MasterSeries 860U Reduced Pressure Zone Assemblies with Union End Ball Valves are used to protect against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. They are also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. They feature a bronze body and union ball valve shutoffs. Maximum Working Pressure: 175psi (12.1 bar). The FEBCO Series 860U Reduced Pressure Zone Assemblies are designed for and suitable for use in health hazard applications. End Connections NPT ANSI / ASME B1.20.1

Pressure - Temperature
  • Maximum Working Pressure: 175psi (12.1 bar)
  • Hydrostatic Test Press: 350psi (24.1 bar)
  • Temperature Range: 32F to 140F (0C to 60C)
Materials
  • Valve Body: Bronze
  • Elastomers: Silicone
  • Springs: Stainless Steel
Models
  • Wye - Strainer
Approvals - Standards
  • ANSI/AWWA Conformance (C511)
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
Typical Installation: SERIES 860U 1/2" - 2" (15-50mm) Outdoor Installation
More Information
Brand Febco
Product Type Reduced Pressure Zone Assemblies (RPZ)
Test Cocks 4 FEMALE
Max Working Pressure 175 PSI
Hydrostatic Test Pressure 350 PSI
Temperature Range 32F to 140F
Main Valve Body Materials Bronze
Relief Valve Body Bronze
Elastomers Nitrile
Diaphragms Nitrile, Fabric reinforced
Springs Stainless Steel
Warranty 1 Year
Size 1-1/2 in.
Connection Union End Ball Valves
Lead Free Not Lead Free
Specifications (958.08 kB)
