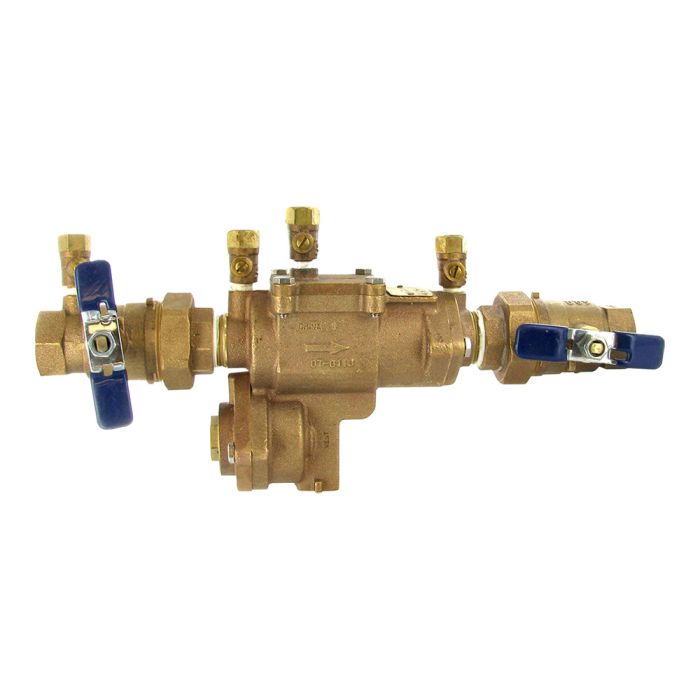

Febco U860 RPZ Backflow Preventer 1 in. Union End Ball Valve | FEU860-100

SKU

FEU860-100

Sales Price $665.96 Our Price $927.95 You save 28%

Overview

FEBCO MASTERSERIES REDUCED PRESSURE ASSEMBLIES WITH UNION END BALL VALVES:

Purchase a backflow device with Union End Ball Valves for easy installation and un-installation to prepare for the winter.

Master Series 860U Reduced Pressure Zone Assemblies with Union End Ball Valves are used to protect against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. They are also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. They feature a bronze body and union ball valve shutoffs. Maximum Working Pressure: 175psi (12.1 bar). The FEBCO Series 860U Reduced Pressure Zone Assemblies are designed for and suitable for use in health hazard applications. End Connections NPT ANSI / ASME B1.20.1

Pressure - Temperature

Maximum Working Pressure: 175psi (12.1 bar)
Hydrostatic Test Press: 350psi (24.1 bar)
Temperature Range: 32F to 140F (0C to 60C)

Materials

Valve Body: Bronze
Elastomers: Silicone
Springs: Stainless Steel

Models

Wye - Strainer

Approvals - Standards

ANSI/AWWA Conformance (C511)
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.

Typical Installation: SERIES 860U 1/2" - 2" (15-50mm) Outdoor Installation

Specs

More Information
Brand	Febco
Product Type	Reduced Pressure Zone Assemblies (RPZ)
Test Cocks	4 FEMALE
Max Working Pressure	175 PSI
Hydrostatic Test Pressure	350 PSI
Temperature Range	32F to 140F
Main Valve Body Materials	Bronze
Relief Valve Body	Bronze
Elastomers	Nitrile
Diaphragms	Nitrile, Fabric reinforced
Springs	Stainless Steel
Warranty	1 Year
Size	1 in.
Connection	Union End Ball Valves
Lead Free	Not Lead Free
