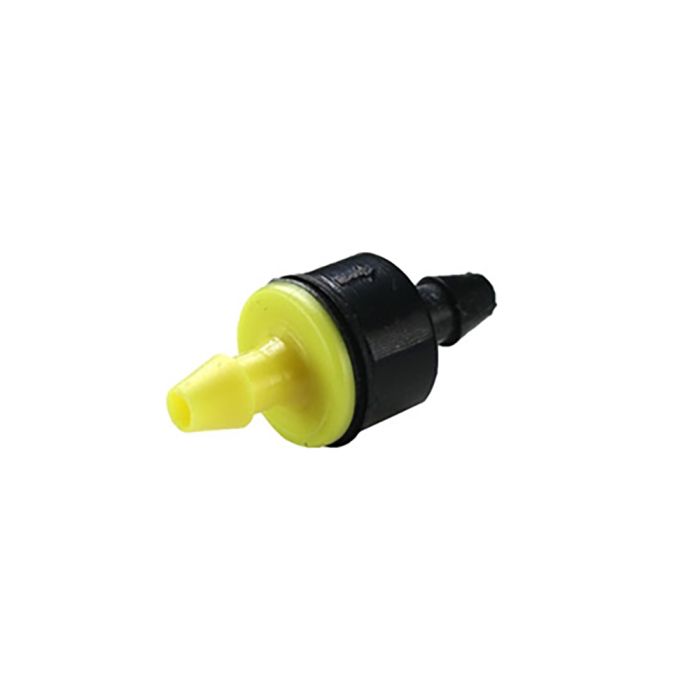

This is a demonstration of the FC77-020 with a PATCAP-S. (PATCAP-S sold separately)
The FC77 Barbed Coupler Flow Control optimizes the performance of micro sprayers. Eight flow levels are color-coded to match the coding used by many major micro sprayer manufacturers in their flow rate designations. Flow rates include 6, 8, 10, 12, 14, 17, 20 and 25 GPH. Each is designed to complement the type and pattern of the individual micro-sprinklers.
The FC77 incorporates Hendricksons patented flow control system proven on our other flow control products. Installation is simple a barbed fitting connects either in-line or at the base connection of 1/4" tubing. To assure long-term service with minimal maintenance, the FC77 features a high-strength black ABS plastic housing for chemical and impact resistance. The flow control itself is made of flexible polyvinyl chloride.
Ensures optimum micro sprayer operation
Balances line pressure for uniformity
Consistent flow rate compensates for terrain elevation or friction loss
Available in eight flow rates from 6 to 25 GPH
Available with 1/4" or 1/8" barb on the outlet
|Max PSI||80 PSI|
|Operating PSI||10 - 80 PSI|
|Flow Rate||20 GPH|
