Hendrickson 6 GPH Coupling 1/4 in. Barb | FC77-6

In stock
SKU
FC77-6
Free Shipping on Orders over $149
Sales Price $0.55 Our Price $1.39 You save 60%

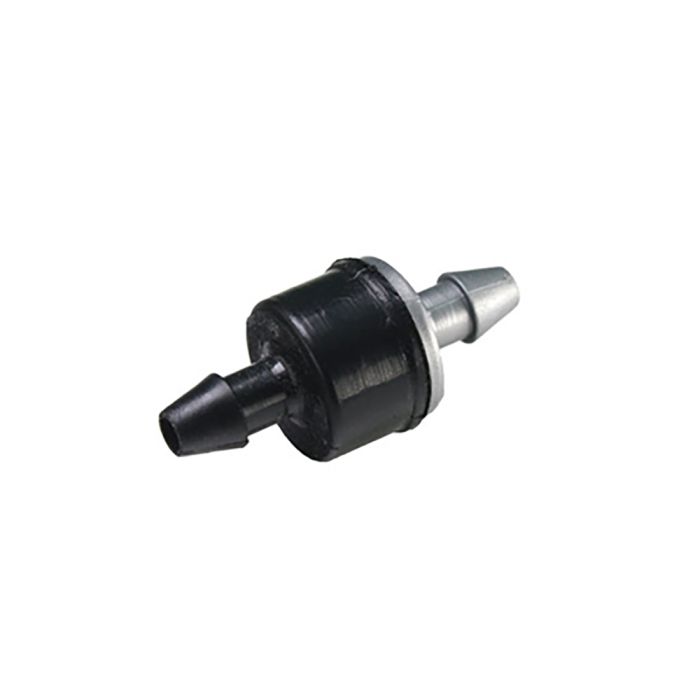

Hendrickson 6 GPH Coupling 1/4 in. Barb

  • Size: 1/4 in.
  • Connection: Barb
  • Flow Rate: 6 GPH

This is a demonstration of the FC77-6 and the PATCAP-S. (PATCAP-S sold separately).

Features & Benefits

The FC77 Barbed Coupler Flow Control optimizes the performance of micro sprayers. Eight flow levels are color-coded to match the coding used by many major micro sprayer manufacturers in their flow rate designations. Flow rates include 6, 8, 10, 12, 14, 17, 20 and 25 GPH. Each is designed to complement the type and pattern of the individual micro-sprinklers.

The FC77 incorporates Hendricksons patented flow control system proven on our other flow control products. Installation is simple a barbed fitting connects either in-line or at the base connection of 1/4" tubing. To assure long-term service with minimal maintenance, the FC77 features a high-strength black ABS plastic housing for chemical and impact resistance. The flow control itself is made of flexible polyvinyl chloride.

Product Details

  • Ensures optimum micro sprayer operation

  • Balances line pressure for uniformity

  • Consistent flow rate compensates for terrain elevation or friction loss

  • Available in eight flow rates from 6 to 25 GPH

  • Available with 1/4" or 1/8" barb on the outlet

Applications

  • Agriculture
  • Commercial/Institutional
  • Residential
More Information
Brand Hendrickson
Max PSI 80 PSI
Operating PSI 10 - 80 PSI
Material Plastic
Warranty 1 Year
Size 1/4 in.
Flow Rate 6 GPH
Connection Barb
Type Coupling
