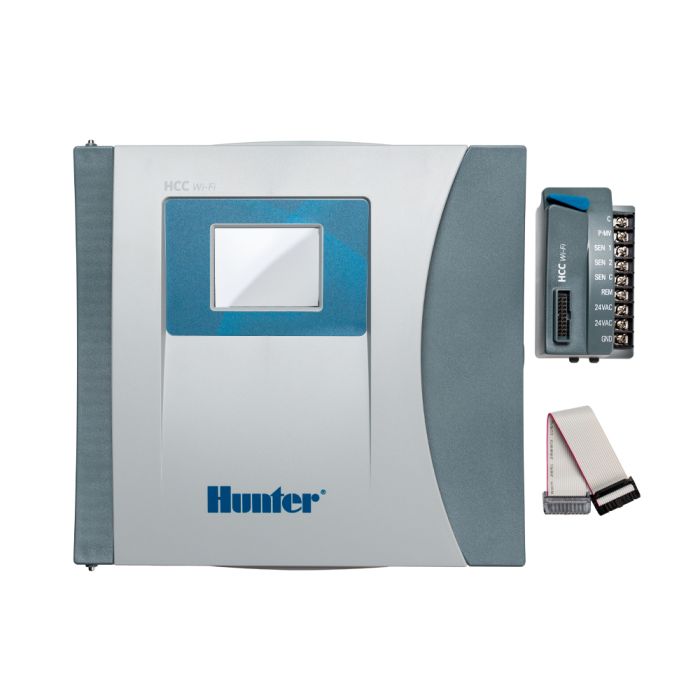

HCC Controller Overview
The next-generation HCC controller brings the powerful Wi-Fi-based irrigation management capabilities of the industry-leading Hydrawise™ platform to high-end residential, commercial, and public-sector projects. The HCC provides a range of convenient features to monitor larger projects — all with the simple click of a button.
The HCC combines robust features of the popular ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. HCC can control up to 54 stations* and effectively operate any two stations simultaneously. The controller’s convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the ICC2. Engineered with a prewired SmartPort®, HCC is also compatible with Hunter’s ROAM and ROAM XL remotes, allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone.
With a built-in milliamp sensor, troubleshooting faulty wires is a breeze. Easily install an HC Flow Meter to accurately monitor flow, prevent wasted water, and avoid damaged landscapes.
The HCC controller has a full graphical touchscreen interface, which makes programming with or without Wi-Fi connectivity and manual starting from the controller a breeze.
HCC Controller Specificiations
Conventional: 8 to 38 (plastic), 8 to 54 (metal and pedestals)*
With two-wire EZDS: up to 54 (all enclosure options)
Standard programming option allows for 6 independent irrigation programs and 6 start times per program
Advanced programming option provides station-based programming with up to 6 total start times available
24-hour maximum station run time provides flexibility for low-flow zones
Any 2 programs or stations can operate simultaneously, providing more efficient watering
2 sensor inputs available for use with any Clik sensors and HC Flow Meter
1 P/MV output for pump start relay and master valve activation
Wi-Fi enabled for quick connection to Hydrawise software
8 cm full-colour touchscreen display for simple programming at the control panel
Built-in milliamp sensor for wire fault detection and alerts
| Number | Description | Number | Description |
| 1 | Front Panel | 6 | Lock and Key Set |
| 2 | Ribbon Cable | 7 | Inner Door |
| 3 | Power Module | 8 | Transformer |
| 4 | Metal Front Door (w/ Lock) | 9 | Smart Port |
| 5 | Stainless Steel Front Door (w/ Lock) |
Articles
Videos
| Brand | Hunter |
|---|---|
| Product Type | Controller Repair Parts |
| Warranty | 5 Years |
