Hunter I-20 Stainless Steel Rotor with Check Valve 6 in. | I20-06-SS

In stock
SKU
I20-06-SS
Free Shipping on Orders over $149
Sales Price $32.75 Our Price $63.45 You save 48%
Case of 20
$32.10 / each
Pallet of 1080
$31.44 / each

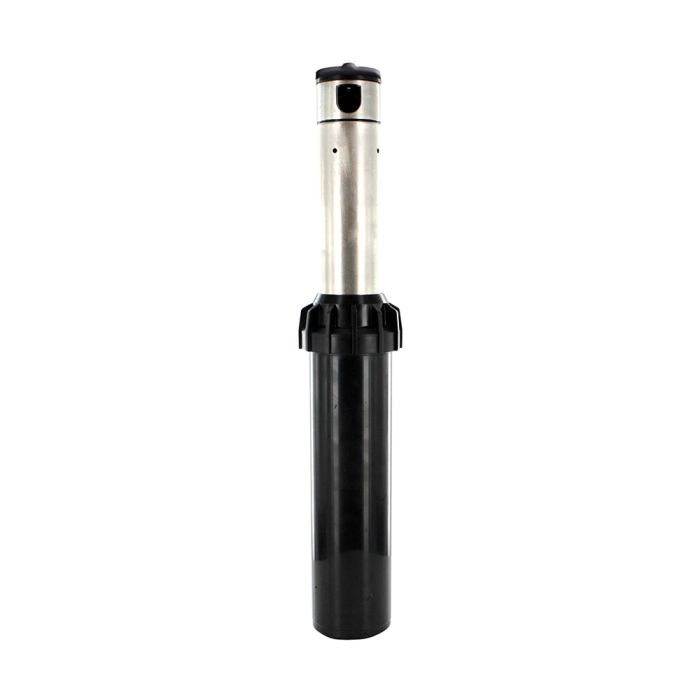

Hunter I-20 Stainless Steel Rotor with Check Valve 6"

  • Hunter I-20 Stainless Steel Rotor
  • With Check Valve
  • Pop-Up Height: 6 inches

Features & Benefits

  • Models: 6"
  • Arc setting: 50 to 360 degrees
  • Factory installed rubber cover
  • Through-the-top arc adjustment
  • Quick check arc mechanism
  • Water lubricated gear-drive
  • Includes: set of 12 nozzles (8 standard and 4 low angle) 1 adjustment tool per order, 1 set instructions

The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned. Other advanced features include 34 nozzle options with several radius choices, and a headed slot and set screw. The diversity of the PGP Ultra offers system installers an array of efficient options on any site.

Automatic Arc Return

This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.

Non-Strippable Drive

The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.

Part and Full Circle in One Model

Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees.

Headed and Slotted Set Screw

Use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed.

Flostop® Control

FloStop closes the flow of water from individual sprinkler heads while the system is running. This is ideal for changing nozzles or turning off specific heads during maintenance and construction.

Optional Reclaimed Water ID

Purple caps indicate where non-potable irrigation water is being used.

Stainless Steel Riser

For unforgiving soil conditions, unpredictable climates, or heavy foot traffic, stainless steel is the best choice

Drain Check Valve (Up to 10 ft. of elevation)

The drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.

Product Details

  • Radius: 17' to 46'
  • Flow Rate: 0.36 to 14.8 GPM
  • Recommended pressure range: 25 to 70 PSI
  • Operating pressure range: 20 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees
  • Overall Height: 9-7/8"
  • Pop-up Height: 6"
  • Exposed Diameter: 1-3/4"
  • Inlet Size: 3/4" female NPT

Related Articles & Videos

Articles

Videos

  • Choosing A Rotor
  • Replacing A Rotor
  • Q&A Sprays & Rotors
  • PGP Ultra / I-20 Blue Standard Nozzle Performance Data

    NOZZLE PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
    1.5
    25 29 1.2 0.27 0.32
    35 31 1.4 0.28 0.32
    45 31 1.5 0.30 0.35
    55 32 1.8 0.34 0.39
    65 32 1.9 0.36 0.41
    2.0
    25 33 1.4 0.25 0.29
    35 33 1.7 0.30 0.35
    45 34 2.0 0.33 0.38
    55 34 2.1 0.35 0.40
    65 34 2.3 0.38 0.44
    2.5
    25 33 1.7 0.30 0.35
    35 35 2.1 0.33 0.38
    45 35 2.5 0.39 0.45
    55 35 2.6 0.41 0.47
    65 35 2.9 0.46 0.53
    3.0
    25 35 2.2 0.35 0.40
    35 36 2.7 0.40 0.46
    45 38 3.0 0.40 0.46
    55 39 3.4 0.43 0.50
    65 39 3.7 0.47 0.54
    4.0
    25 37 3.0 0.42 0.49
    35 39 3.5 0.44 0.51
    45 40 4.0 0.48 0.56
    55 41 4.5 0.52 0.60
    65 41 4.8 0.55 0.63
    5.0
    25 37 3.7 0.52 0.60
    35 39 4.5 0.57 0.66
    45 42 5.0 0.55 0.63
    55 42 5.7 0.62 0.72
    65 42 6.2 0.68 0.78
    6.0
    25 38 4.3 0.57 0.66
    35 40 5.6 0.67 0.78
    45 43 6.0 0.62 0.72
    55 44 6.7 0.67 0.77
    65 44 7.3 0.73 0.84
    8.0
    25 37 6.0 0.84 0.97
    35 41 7.0 0.80 0.93
    45 44 8.0 0.80 0.92
    55 46 9.0 0.82 0.95
    65 46 9.8 0.89 1.03
    Bold = Recommended pressure.
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

PGP Ultra / I-20 Grey Low Angle Nozzle Performance Data

NOZZLE PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
2.0
30 25 1.6 0.49 0.57
40 27 1.9 0.50 0.58
50 28 2.1 0.52 0.60
60 30 2.3 0.49 0.57
2.5
30 27 2.1 0.55 0.64
40 30 2.5 0.53 0.62
50 33 2.8 0.49 0.57
60 35 3.0 0.47 0.54
3.5
30 29 2.8 0.64 0.74
40 32 3.1 0.58 0.67
50 35 3.5 0.55 0.64
60 37 3.8 0.53 0.62
4.5
30 29 3.4 0.78 0.90
40 32 3.9 0.73 0.85
50 35 4.4 0.69 0.80
60 37 4.7 0.66 0.76
Bold = Recommended pressure.
All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

PGP Ultra / I-20 Green High/Low Flow Nozzle Performance Data

NOZZLE PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
10
40 42 8.4 0.92 1.06
50 43 9.5 0.99 1.14
60 45 10.5 1.00 1.15
70 47 11.4 0.99 1.15
13
40 43 10.9 1.13 1.31
50 44 12.3 1.22 1.41
60 45 13.6 1.29 1.49
70 47 14.8 1.29 1.49
6.0 LA
30 31 4.2 0.84 0.97
40 35 5.0 0.79 0.91
50 37 5.8 0.82 0.94
60 39 6.3 0.80 0.92
8.0 LA
40 37 6.7 0.94 1.09
50 39 7.7 0.97 1.13
60 41 8.5 0.97 1.12
70 41 9.2 1.05 1.22
Bold = Recommended pressure.
All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

PGP Ultra / I-20 Black Short Radius Nozzle Performance Data

NOZZLE PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
.50 SR
30 17 0.36 0.24 0.28
40 17 0.43 0.29 0.33
50 18 0.50 0.30 0.34
60 19 0.57 0.30 0.35
1.0 SR
30 17 0.78 0.52 0.60
40 17 0.90 0.60 0.69
50 18 1.0 0.59 0.69
60 19 1.1 0.59 0.68
2.0 SR
30 17 1.4 0.93 1.08
40 17 1.7 1.13 1.31
50 18 2.0 1.19 1.37
60 19 2.2 1.17 1.35
.75 SR
30 23 0.58 0.21 0.24
40 24 0.68 0.23 0.26
50 25 0.75 0.23 0.27
60 26 0.83 0.24 0.27
1.5 SR
30 23 1.1 0.40 0.46
40 24 1.3 0.43 0.50
50 25 1.5 0.46 0.53
60 26 1.6 0.46 0.53
3.0 SR
30 23 2.5 0.91 1.05
40 24 2.7 0.90 1.04
50 25 3.0 0.92 1.07
60 26 3.1 0.88 1.02
Bold = Recommended pressure.
All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

PGP Ultra / I-20 MPR-25 Red Nozzle Performance Data

ARC PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
90°


25 23 0.74 0.54 0.62
35 24 0.88 0.59 0.68
45 25 1.00 0.62 0.71
55 25 1.11 0.68 0.79
65 25 1.21 0.75 0.86
120°


25 23 1.00 0.55 0.63
35 24 1.21 0.61 0.70
45 25 1.38 0.64 0.74
55 25 1.53 0.71 0.82
65 25 1.67 0.77 0.89
180°


25 23 1.44 0.52 0.61
35 24 1.73 0.58 0.67
45 25 1.98 0.61 0.70
55 25 2.21 0.68 0.79
65 25 2.41 0.74 0.86
360°


25 23 2.78 0.51 0.58
35 24 3.34 0.56 0.64
45 25 3.82 0.59 0.68
55 25 4.25 0.65 0.76
65 25 4.63 0.71 0.82
More Information
Brand Hunter
Type Rotor
Application Residential And Commercial
Inlet Size 3/4
Body Height 9-7/8
Pressure Range (PSI) 25-70
Warranty 5 Years
Pop-Up Height 6 in.
Check Valve Check Valve
Riser Material Stainless Steel
Spray Pattern Part Circle Adjustable (50 - 360)
Advance Features Check Valve, Flow Shut-Off
