Hunter IC-600PL Front Panel | 124705

In stock
SKU
124705
Free Shipping on Orders over $149
Sales Price $152.95 Our Price $210.00 You save 27%

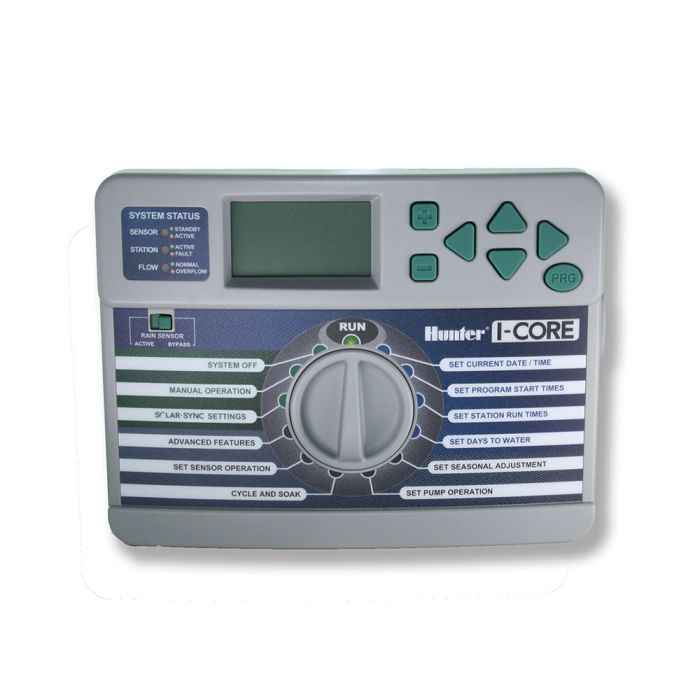

Hunter IC-600PL Front Panel

  • Type: Front Panel ONLY
  • Controller Compatibility: IC-600PL

Features & Benefits

Want it all? Gorgeous turf, advanced programming capability, and an intuitive interface? Meet the I-Core. Designed for demanding commercial and high-end residential applications, the full-featured I-Core controller is easy to use, easy to install, and easy to program, with a variety of new features that will redefine irrigation intelligence.

Modular means more options. And more options mean an easy install. The I-Core plastic is expandable from 6 to 30 stations and the metal is expandable to 42, for a broad range of choices to meet all of your customers' needs.

I-Core's real-time flow monitoring capability provides overflow protection and flow totaling to minimize the potential for water waste.

  • IC-600-PL - 6-Station base domestic model with outdoor plastic cabinet, can be configured by adding modules up to 30 stations
  • IC-600-M - 6-Station base model with metal cabinet, can be configured by adding modules up to 42 stations
  • IC-600-PP - 6-Station base model with plastic pedestal, can be configured by adding modules up to 42 stations
  • Modular controller expandable from 6 stations to 30 stations (plastic cabinet) and 42 stations (metal cabinet) with 6-station ICM modules
  • Unique module design allows servicing of module without removing field wires from the controller
  • Large, easy to read, backlit graphics display
  • Removable front panel for remote programming
  • Seasonal Adjustment by Program (globally, monthly, or daily by Solar Sync)
  • Seasonal Adjustment: 0% to 300%
  • 4 independent programs (A, B, C, & D)
  • Multi-language capability, programmable in six different languages
  • Diagnostic Dashboard continually monitors and displays system operation for flow, station and sensor status
  • Automatic short circuit detection, skips shorted stations and continues watering, no fuses to replace
  • Station run times: 12 hours
  • Eight start times for Programs A,B, and C; 16 start times for Program D
  • Program stack and overlap capability, any two programs can run concurrently
  • Real time flow monitoring capability built in
  • Flow learning by station and station level diagnostics, alarms and shutdowns
  • Flow totalizer provides cumulative flow history
  • Hunter Quick Check helps troubleshoot field wiring issues
  • No Water Window capability
  • Total run time calculator
  • Test program feature
  • One button manual start and advance
  • Easy Retrieve Memory backup feature can save and restore preferred program
  • Factory installed SmartPort connector for use with Hunter ROAM and ICR Remotes
  • All models NEMA rated for weather resistance
  • Programmable station delay up to 9 hours
  • Programmable rain delay up to 180 days
  • Cycle and Soak capability by station
  • Multiple sensor inputs
  • Rain sensor override

Product Details

  • Transformer input: 120/240 VAC, 50/60 Hz
  • Transformer output: 24 VAC, 1.5 A Station output: 24 VAC, 0.56 A (2 valves)
  • Maximum total output: 24 VAC, 1.4 A (5 valves)
  • Master valve output: 24 VAC, 0.28 A
  • UL, C-UL, CE, C-tick

Steps to Replace the Front Panel on a I-Core Controller

STEP ONE STEP TWO
Turn controller power off With the controller's power off, open the face panel's door (similar to how the front door of the controller was opened).
STEP THREE STEP FOUR
Once the front panel's door is open, locate the grey ribbon cable in the top right corner on the back of the face panel. Carefully unplug the ribbon cable by pulling out on the black plastic plug.
STEP FIVE STEP SIX
Press the tab release on the back of the face panel door to the left to release the panel from the frame. With the tab release pressed, the face panel can be removed from the door frame.
STEP SEVEN

To install the new panel simply reverse this process.
More Information
Brand Hunter
Front Panel Yes
Warranty 5 Years
Type Front Panel
Controller Compatibility IC-600PL
ICORE Manual (8.47 MB)
