Hunter I-Core 6 Station Indoor/Outdoor Plastic Controller | IC-600PL

In stock
SKU
IC-600PL
Free Shipping on Orders over $149
Sales Price $377.91 Our Price $472.39 You save 20%

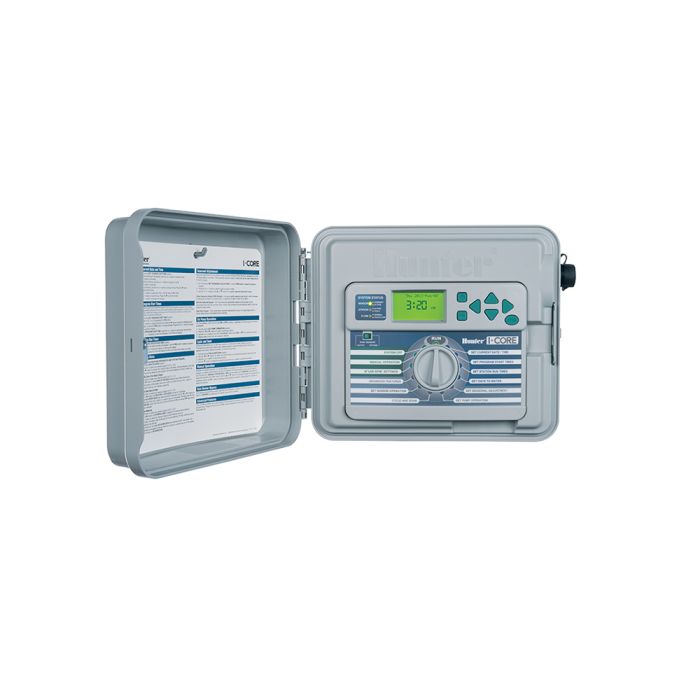

Hunter IC-600PL I-Core 6 Station Controller Plastic Cabinet

  • Hunter I-Core indoor/Outdoor Plastic Controller (IC-600PL)
  • 6 Station
  • Modular Controller

Features & Benefits

The I-Core is Hunters controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed Smart Port, six language capability, and a bold, back-lit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL two-wire module and decoders can expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservation focused Solar-Sync, I-Cores possibilities are all but limitless. When used with Solar Sync, the I-Core is certified by the EPA as a Water sense-approved controller yet another reason why the I-Core stands alone as the commercial controller of choice.

  • Number of stations: 6 to 42 (48 stations with DUAL decoders)
  • Type: Modular
  • Enclosure: Outdoor, plastic or metal
  • Independent programs: 4
  • Start times per program: 8 (A, B, C); 16 (D)
  • Max. station run time: 12 hrs
  • Warranty period: 2 years

Product Details

  • Transformer input: 120/230 VAC, 50/60 Hz
  • Transformer output (24 VAC): 1.4 A
  • Dual voltage transformer (120/240 VAC)
  • Station output (24 VAC): 0.56 A
  • Simultaneous program operation: 2
  • Pump/Master Valve (24 VAC): 0.28 A
  • Sensor inputs: Plastic: 2; Metal: 3
  • Operating temperature: 0 F to 140 F
  • CE, UL, cUL, C-tick, FCC
  • Enclosure rating: Steel wall mounts: IP-56
  • Plastic pedestal: IP-24
  • Plastic wall-mount: IP-44
  • Steel wall mount: IP-56
  • Plastic pedestal: IP-24
  • Plastic wall mount: IP-44
  • Advanced Feature description

Station Module Installation

  1. Open the inner facepack door and locate the Slide Lock. Move the Slide Lock bar to the power Off position.
  2. The module needs to be inserted into the first open module slot position from the left or next available position in the back of the controller. Do not skip slots by leaving them empty.
  3. Insert the module with the gold tab on the top of the module facing up. Slide the module straight in until it clicks into place.
  4. Slide the Slide Lock into the power On position.
  5. The controller will automatically identify any new modules that have been added. You can turn the dial to set station run times to confirm the correct number of stations have been acknowledged.

Power Module Installation

The I-Core power module supplies power to the facepack and accessory terminals. It typically does not need to be removed, however can be replaced for servicing.

  1. To install the Power Module, open the inner facepack door, and locate the module lock bar. Move the Slide Lock bar to the power Off position.
  2. Insert the power module into the first slot position from the left, with the gold tab on the top of the module facing up. Slide the module straight in until it clicks into place.
  3. Move the Slide Lock to the power On position.
  4. The Power Module must be in place in order for the controller to operate and function.

Related Articles & Videos

Articles

Videos

The I-Core Series Controller Is Designed For Use In Demanding Commercial And Residential Properties

Check Out These Advanced Features Of The I-Core Series

The Hunter Industries controllers are known for their durable and reliable features. Some of these features include the total run time calculator, multi-language programming, non-watering days, cycle and soak, delay between stations, seasonal adjustments, and many more. These key features are included in all of the Hunter I-Core irrigation controllers to assist the user with their demanding commercial and residential properties.

I-Core Quick Specs:

  • Number of Stations: 6
  • Number of Programs: 4
  • Valve Wire Options: Conventional / Decoder
  • Start Run Times Per Program: 8
  • Controller Type: Modular

Learn How To Connect The Power And Station Modules To The I-Core Series

The IC-600PL is a base model controller that is expandable with the use of a Hunter expansion module. The cabinet version is expandable from 6 to 30 stations. The first step to installing an expansion module is to open the inner face panel and locate the slide lock. Then turn the slide lock bar to the off position. Next, insert the module into the next available one without skipping empty slots. Finally turn the slide lock to the on position and the controller will automatically identify that the stations have been added. These stations will now be available for programming in the program controls of the timer's interface.

Optional Accessories Compatible With The Hunter I-Core Controller

The Hunter I-Core controller can be fully optimized when it is installed with a weather sensor, pump relay, expansion modules, and remote control. The base model of this control includes 6 stations and is fully compatible with a variety of accessories including the weather clik series, a ROAM remote control, and a pump relay. Each of these products can be purchased at Sprinkler Warehouse at discounted prices. For more information about how to install these products check out the I-Core manual located in the "owner's manual" tab on the IC-600PL product page.

Learn Which Landscape Applications Work Best With The I-Core Controller

The IC-600PL 6 station irrigation controller is designed for heavy use in commercial applications. It can also be used for residential and light commercial use. This durable modular controller is loaded with innovative features and flow monitoring support. The built-in conversion-focused Solar Sync technology makes the possibilities of this controller nearly limitless. The Hunter Industries modular I-Core series controller is a contractor favorite due to its compatibility with ROAM remotes as well as its expandability from 6 to 42 stations.

Frequently Asked Questions

Is the Hunter I-Core 6-station controller expandable?

The IC-600PL is the base model for the Hunter I-Core series and is fully expandable with the installation of one or more expansion modules. The I-Core series controller has the capability to control from 6-42 stations. These additional modules can be purchased separately online or in-store at Sprinkler Warehouse.

Which remotes are compatible with the I-Core controller?

The Hunter IC-600PL can be enhanced with the purchase of a ROAM or ROAM XL remote. The addition of the ROAM remote allows the user to control the timer from a distance up to 1000 feet when in the line of sight of the controller. The ROAM XL can be used at a distance of 2 miles when the user is in the line of sight of the timer. Each of these controllers can be found at sprinklerwarehouse.com.

Are weather sensors compatible with the I-Core controller?

Yes, there are a wide variety of Hunter weather sensors that can be used with the IC-600PL controller. Sprinkler Warehouse offers both wired and wireless versions including the Rain-Clik, Freeze-Clik, Wing-Clik, and many more. To learn more about these weather sensors and how they can be installed on your I-Core controller, visit Sprinkler Warehouse's online articles and video tutorial libraries.

More Information
Brand Hunter
Expandability Modular
Power Source AC Powered
Number of Programs 4
Start Times Per Program 8 or 16
Max Station Run Time (HRS) 12
Sensor Inputs 2
Indoor Yes
Outdoor Yes
Sensor Compatible Rain, Freeze, Solar
Rain Sensor Compatible Yes
Solar Sensor Compatible Yes
Freeze Sensor Compatible Yes
Application Residential|Light Commercial|Commercial
Warranty 2 Years
Series I-Core
Zones 6
Enclosure Type Indoor/Outdoor
Cutsheet (245.37 kB)
Instruction Card (396.15 kB)
Manual (8.39 MB)
Instructions (204.42 kB)
