Hunter ICC 22 Station Expansion Module | ICM-2200

In stock
SKU
ICM-2200
Free Shipping on Orders over $149
Sales Price $226.95 Our Price $447.68 You save 49%

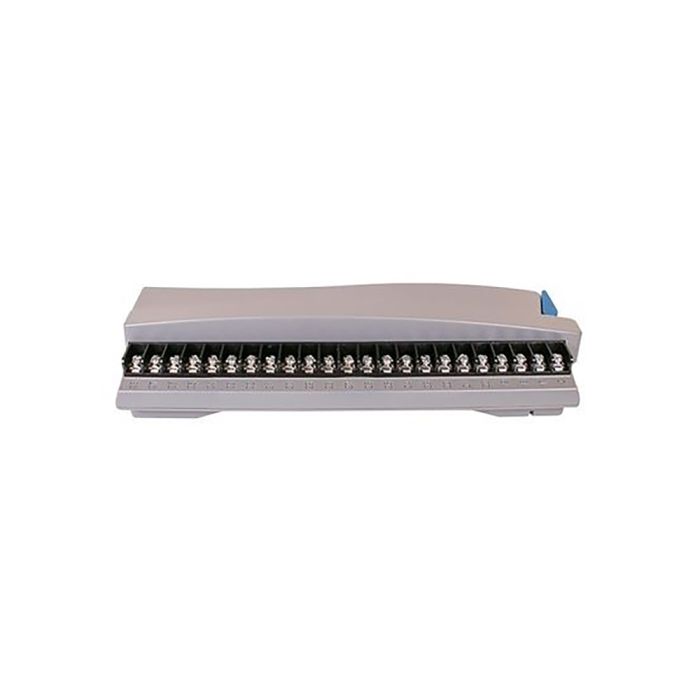

Hunter ICC2 22 Station Expansion Module

  • Stations: 22
  • Type: Expansion Module
  • Controller Compatibility: ICC2 Controller

Features & Benefits

22-station expansion module (one per controller)

ICC2 is a value-packed, light-to-mid size commercial irrigation controller that delivers more than you expect, just like its famous predecessor. It is designed to control larger projects (up to 54 stations) and offers the water savings you expect from a Hunter controller.

ICC2 can run any two of its four automatic programs simultaneously. The ICC2 face pack and station output modules (with enhanced surge protection) are compatible with the original ICC controllers, in four and eight-station increments. An optional expansion module allows up to 54 stations in ICC2 metal enclosures and 38 stations in plastic enclosures.

ICC2 offers simple programming with a high-visibility backlit display and customizable language overlays. It also includes advanced features like Easy RetrieveTM memory backup, Cycle and Soak, and Seasonal Adjustment.

ICC2 controllers are prewired for remote control with Hunter ROAM and ROAM XL transmitters, and have built-in Solar Sync for automatic water savings, with an optional sensor. ICC2 is available as a plastic outdoor wall mount, metal outdoor wall mount, stainless steel wall mount, or plastic pedestal. Optional matching metal pedestals in gray or stainless are also available.

Product Details

  • Number of stations: Up to 54 (metal enclosure) or 38 (plastic enclosure)
  • Type: Modular, expansion modules in 4 and 8 station increments, plus 22-station supermodule
  • Enclosures: Outdoor, metal, plastic, stainless steel, and plastic pedestal (120/230 VAC)
  • Independent programs: 4, any two may run simultaneously
  • Start times: 8 per program
  • Max station run time: 12 hours
  • Warranty period: 5 years

Electrical Specifications

  • Transformer input: 120/230 VAC, dual tap Transformer output: 1.4 A
  • Current draw: 120 VAC, Standby 0.13 A (3.9W), Max 0.35 A, (19.85 W)
  • Current draw: 230 VAC, Standby 0.12 A (5.56W), Max 0.22 A (23.5 W)
  • Station output: Up to .56 A
  • P/MV output: Up to .56 A
  • Sensor inputs: 1 (Clik or Solar Sync)
  • Operating temperature: 0 Degrees to 140 Degrees F

Approvals

  • CE, UL, cUL, RCM, FCC
  • Enclosure rating:
    • Plastic, IP-54,
    • Steel, IP-54
    • Plastic Pedestal, IP-24
More Information
Brand Hunter
Conserva Catalog Yes
Warranty 5 Years
Type Expansion Module
Controller Compatibility ICC2 Controller
