Hunter PGP ULTRA Rotor with Check Valve (Non-Potable) 4 in. | PGP-04-CV-R

In stock
Free Shipping on Orders over $149
Sales Price $15.95 Our Price $25.20 You save 37%
Case of 20
$15.63 / each
Pallet of 1440
$15.31 / each

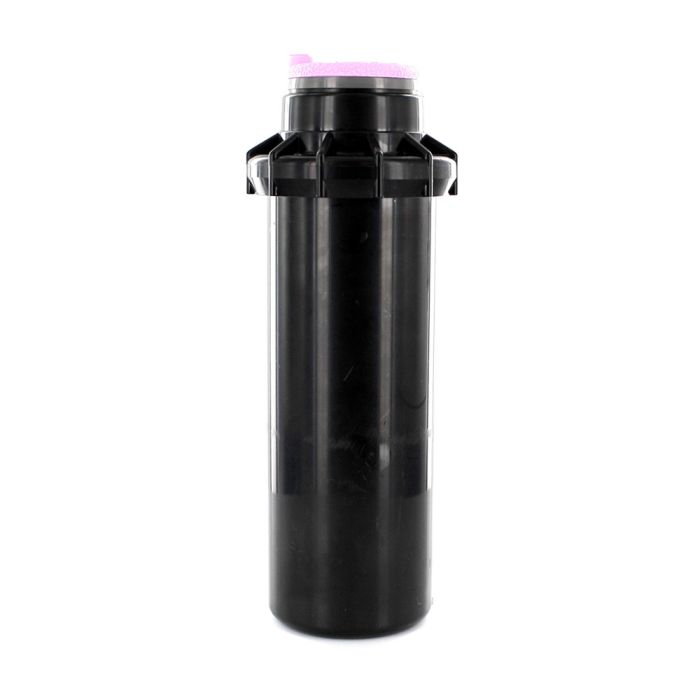

Hunter PGP ULTRA Rotor with Check Valve (Non-Potable) 4 in.

  • Pop-Up Height: 4 in.
  • Spray Pattern: Part Circle Adjustable (50 - 360)
  • Advance Features: Check Valve, Non-Potable

Features & Benefits

The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return.

These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned. Other advanced features include 34 nozzle options with several radius choices, and a headed slot and set screw. The diversity of the PGP Ultra offers system installers an array of efficient options on any site.

  • Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50° to 360°

  • Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel

  • Part- and full-circle in one model for flexibility across landscapes and reduced inventory

  • Headed and slotted setscrew allows radius adjustment with a Hunter wrench or flat-blade screwdriver

  • Flat-top nozzles allow fast, easy insertion

  • QuickCheck™ arc mechanism for fast arc adjustment

Product Details

  • Models: Shrub
  • Arc setting: 50 to 360 degrees
  • Factory installed rubber cover
  • Through-the-top arc adjustment
  • Quick check arc mechanism
  • Water lubricated gear-drive
  • Includes: set of 12 nozzles (8 standard and 4 low angle), 1 adjustment tool per order, 1 set instructions

Operating Range

  • Radius: 17' to 47'
  • Flow rate: 0.36 to 14.8 GPM
  • Recommended pressure range: 25 to 70 PSI
  • Operating pressure range: 20 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees


  • Overall Height: 7-1/2"
  • Pop-up Height: 4"
  • Exposed Diameter: 1-3/4"
  • Inlet Size: 3/4" female NPT
Automatic Arc Return Non-Strippable Drive

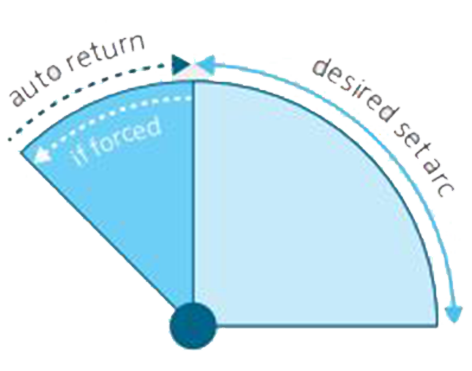

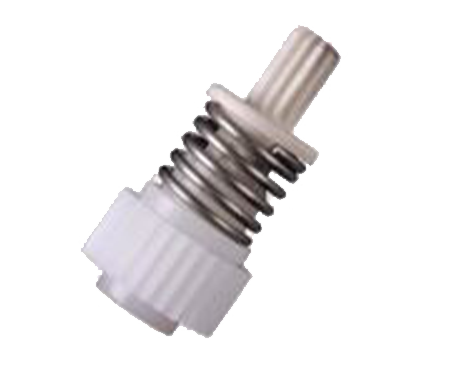

The patented automatic arc return resets the turret to the original arc, regardless of where it is turned, ensuring vandal protection in any environment. The patented, vandal-proof drive mechanism offers reliable protection against internal gear damage.
Complete Arc Adjustment Drain Check Valve

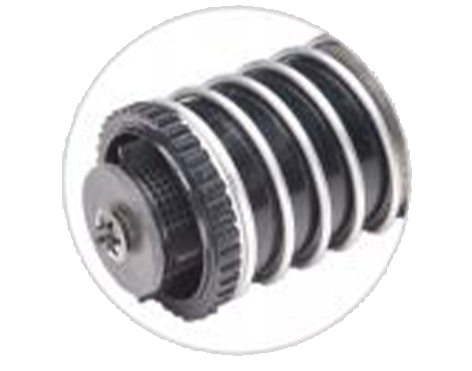

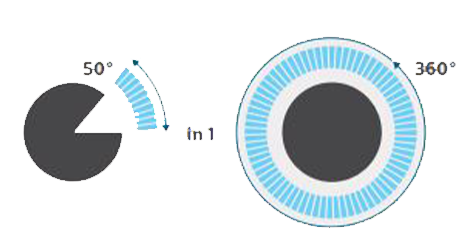

Adjust from 50° to a non-reversing 360° for flexibility across all landscapes and reduced inventory Stop runoff with a standard check valve in the I-20 and PGP-CV (up to 10') or field-installable (up to 3') for PGP Ultra
More Information
Brand Hunter
Type Rotor
Application Residential And Commercial
Inlet Size 3/4
Body Height 7-3/4
Pressure Range (PSI) 25-70
Warranty 5 Years
Pop-Up Height 4 in.
Check Valve Check Valve
Riser Material Plastic
Spray Pattern Part Circle Adjustable (50 - 360)
Advance Features Check Valve, Non-Potable / Reclaimed Water
Specifications (146.99 kB)
