Hunter I-20 Rotor with Check Valve (Non-Potable) 4 in. | I20-04-R

In stock
SKU
I20-04-R
Free Shipping on Orders over $149
Sales Price $19.25 Our Price $35.06 You save 45%
Case of 20
$18.87 / each
Pallet of 1440
$18.48 / each

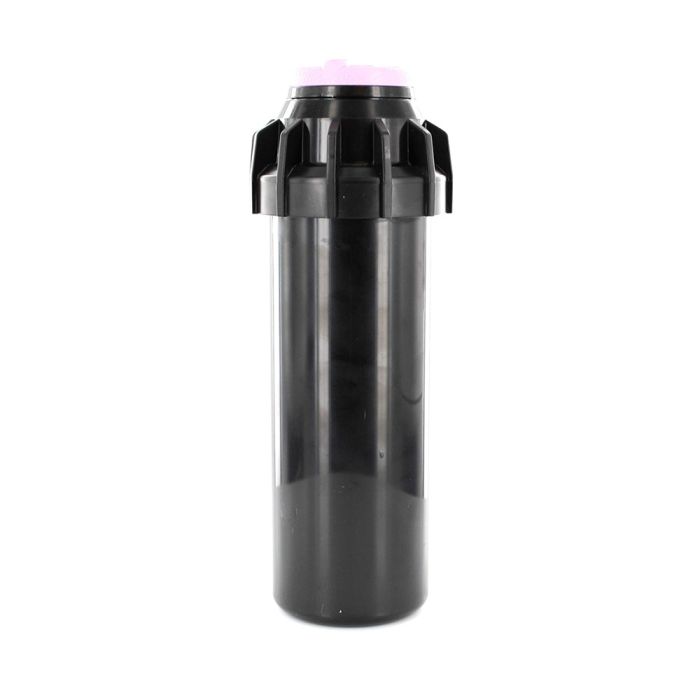

Hunter I-20 Rotor with Check Valve (Non-Potable) 4 in.

  • Hunter Rotor with Check Valve (Non-Potable)
  • Series: I20
  • Pop-Up Height: 4 in.

Features & Benefits

With 34 nozzle choices, a 17 to 46 ft. radius, and 6 body choices, the I-20 is an indispensable rotor. Whether you've got a small area, sandy soil, or a mix of shrubs and grass, the I-20 is ready to water with efficiency and reliability. Recent improvements include automatic arc return; non-reversing 360, from 50 to 360 degrees; and a non-strippable, vandal-proof drive mechanism that prevents gear stripping and saves repair costs. Adding FloStop control, easy through-the-top arc adjustment, and a standard drain-check valve all equate to a rotor that stands second-to-none in its class.

  • Arc setting: 50 to 360 degrees
  • Factory installed rubber cover
  • Through-the-top arc adjustment
  • Quick check arc mechanism
  • Water lubricated gear-drive
  • Nozzle choices: 34
  • This unit has a Flow Shut-off

Product Details

  • Models: Shrub, 4, 6, 12 in.
  • Models stainless riser: 4, 6 in.
  • Nozzle racks: 1.5 to 8.0 Blue, 2.0 to 4.5 Low Angle Gray, 0.50 to 3.0 Short Radius Black, 6.0 to 13.0 Green, MPR-25, MPR-30, MPR-35
  • Warranty period: 5 years

Hunter I20-04-R 4 in. Pop-Up Adjustable Arc Rotor for Reclaimed Water

The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned. Other advanced features include 34 nozzle options with several radius choices, and a headed slot and set screw. The diversity of the PGP Ultra offers system installers an array of efficient options on any site.

Features / Benefits

  • Models: 4"
  • Arc setting: 50 to 360 degrees
  • Factory installed rubber cover
  • Through-the-top arc adjustment
  • Quick check arc mechanism
  • Water lubricated gear-drive
  • Includes: set of 12 nozzles (8 standard and 4 low angle) 1 adjustment tool per order, 1 set instructions

Operating Range

  • Radius: 17' to 46'
  • Flow Rate: 0.36 to 14.8 GPM
  • Recommended pressure range: 25 to 70 PSI
  • Operating pressure range: 20 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees

Dimensions

  • Overall Height: 7-1/8"
  • Pop-up Height: 4"
  • Exposed Diameter: 1-3/4"
  • Inlet Size: 3/4" female NPT
More Information
Brand Hunter
Type Rotor
Application Residential And Commercial
Inlet Size 3/4
Body Height 7-1/8
Pressure Range (PSI) 25-70
Warranty 5 Years
Pop-Up Height 4 in.
Check Valve Check Valve
Riser Material Plastic
Spray Pattern Part Circle Adjustable (50 - 360)
Advance Features Check Valve, Non-Potable / Reclaimed Water, Flow Shut-Off
Specifications (172.60 kB)
