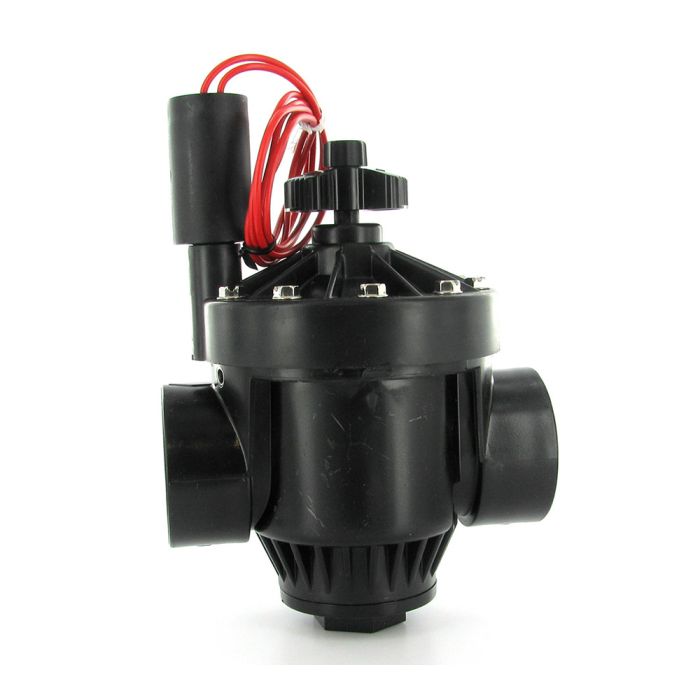

Hunter PGV Inline / Angle Valve with Flow Control 1-1/2 in. FPT | PGV-151

• 1 ½" Hunter PGV-151 Valve
• With Flow Control
• 1 ½" Female Threaded Inlet/ Outlet
• Choice of Side Inlet or Bottom Inlet

Features & Benefits

The PGV-151 is a Globe / Angle Valve. It has inlets on both the side and bottom allowing for great flexibility. Many times the irrigation mainline is installed much deeper than the systems lateral lines. This may be due to local codes or for freeze protection. For these situations, Hunter offers 1½" and 2" valves with a globe/angle configuration in one valve.

The globe configuration offers the best choice for those systems that have the mainline at the same depth as the laterals. The angled configuration allows the installer to place the valve on top of a deep mainline, which allows easy access to the valve for maintenance. In addition, the PGV angle configuration boasts a lower pressure loss across the valve compared to a globe-style valve, providing a big advantage on systems that may experience low operating pressures.

This valve has Flow Control which allows the fine-tuning of flow and pressure for the zone. This maximizes the efficiency of the zone and helps to prevent misting which can occur if the pressure is too high.

The Hunter PGV Valve is a professional-grade line of valves that are built to work with a broad range of landscaping demands.

This irrigation valve is considered a diligent, rugged, and mighty addition to any sprinkler and irrigation system. The Hunter PGV-Series Valve offers features such as rigid diaphragm support, flow control, and high-grade construction to prevent stress failure. This top-of-the-line valve has an internal manual bleed as well as a dependable Hunter solenoid for long life and operation.

• Globe and angle configurations: Easy to use in any application
• Maximize efficiency and prolong the life of a system by fine-tuning flow and pressure for each zone
• Heavy-duty Hunter solenoid: Provides dependable operation and long life
• High-grade construction, 150 PSI rating: Made of durable materials to resist wear
• External and Internal manual bleed: Easy to use and keeps valve box dry. All Hunter irrigation valves feature internal manual bleed, ensuring a neat, dry valve box
• Rigid diaphragm support: Works to prevent stress failure in tough conditions, ensures leak-free performance
• Captive bonnet bolts and solenoid plunger: No lost parts during servicing
• Low flow capability allows the use of Hunter's micro-irrigation products
• Accu-Sync pressure regulator compatible: Dial setting pressure regulation for precise system control
• Temperature rating: 150°F
• Warranty period: 2 years

Product Details

• Flow: .2 to 120 GPM (0.04 to 27.2 m3/hr; 0.7 to 454.2 l/min)
• Recommended Pressure Range: 20 to 150 PSI (1.4 to 10.3 bars; 138 to 1034 kPa)
• Heavy-duty solenoid: 24VAC; 370mA inrush current; 190mA holding current; 60 cycles; 475mA inrush current; 230mA holding current; 50 cycles

Dimensions

• 1" Globe and Male x Male: 5" H x 4 1/2" L x 2 1/2" W (13 cm H x 11 cm L x 6 cm W)
• 1" Male x Barb: 5" H x 5 1/2" L x 2 1/2" W (13 cm H x 14 cm L x 6 cm W)
• 1" Angle: 5 1/2" H x 3 1/2" L x 2 3/4" W (14 cm H x 9 cm L x 7 cm W)
• 1" Globe/Angle: 7 1/2" H x 5 3/4" L x 4 1/2" W (19 cm H x 15 cm L x 11 cm W)
• 2" Globe/Angle: 8" H x 6 3/4" L x 5 1/4" W (20 cm H x 17 cm L x 13 cm W)
