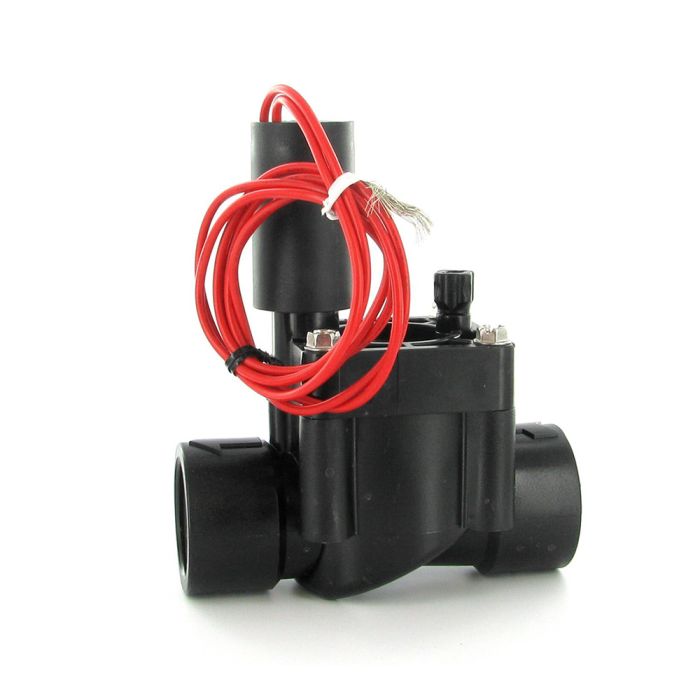

The Hunter PGV Valve is a professional grade line of valves that are built to work with a broad range of landscaping demands.
This irrigation valve is considered a diligent, rugged and mighty addition to any sprinkler and irrigation system. The Hunter PGV-Series Valve offers features such as a rigid diaphragm support, flow control, and high-grade construction to prevent stress failure. This top-of-the-line valve has an internal manual bleed as well as dependable Hunter solenoid for long life and operation.
Dimensions
Articles
Videos
PGV PRESSURE LOSS IN PSI | ||||||
---|---|---|---|---|---|---|
FLOW GPM | 1" GLOBE | 1" ANGLE | 1 ½" GLOBE | 1 ½" ANGLE | 2" GLOBE | 2" ANGLE |
1 | 1.1 | 1.0 | - | - | - | - |
5 | 1.9 | 1.0 | - | - | - | - |
10 | 1.9 | 1.0 | - | - | - | - |
15 | 1.6 | 1.0 | - | - | - | - |
20 | 3.3 | 2.0 | 3.0 | 3.0 | 1.0 | 1.0 |
30 | 6.1 | 3.0 | 3.0 | 3.0 | 1.0 | 2.0 |
40 | - | - | 3.0 | 3.0 | 2.0 | 2.0 |
50 | - | - | 4.0 | 3.5 | 1.0 | 1.0 |
60 | - | - | 5.0 | 4.0 | 2.0 | 2.0 |
80 | - | - | 5.5 | 4.5 | 3.0 | 2.0 |
100 | - | - | - | - | 5.0 | 3.0 |
120 | - | - | - | - | 6.0 | 5.0 |
PGV PRESSURE LOSS IN BARS | ||||||
---|---|---|---|---|---|---|
M3/HR | 1" GLOBE | 1" ANGLE | 1 ½" GLOBE | 1 ½" ANGLE | 2" GLOBE | 2" ANGLE |
0.23 | 0.08 | 0.07 | - | - | - | - |
1.14 | 0.13 | 0.07 | - | - | - | - |
2.27 | 0.13 | 0.07 | - | - | - | - |
3.41 | 0.11 | 0.07 | - | - | - | - |
4.54 | 0.23 | 0.14 | 0.21 | 0.21 | 0.07 | - |
6.81 | 0.42 | 0.21 | 0.21 | 0.21 | 0.07 | - |
9.08 | - | - | 0.21 | 0.21 | 0.14 | - |
11.36 | - | - | 0.28 | 0.24 | 0.14 | - |
13.63 | - | - | 0.34 | 0.28 | 0.14 | - |
18.17 | - | - | 0.38 | 0.31 | 0.14 | - |
22.71 | - | - | - | - | 0.21 | - |
27.25 | - | - | - | - | 0.34 | - |
Brand | Hunter |
---|---|
Product Type | Inline Valves |
Body Material | Plastic |
Flow Control | No Flow Control |
Valve Type | In-Line |
Connection | FPT |
Application | Residential |
Solenoid | Yes |
Warranty | 2 Years |
Size | 1 in. |
