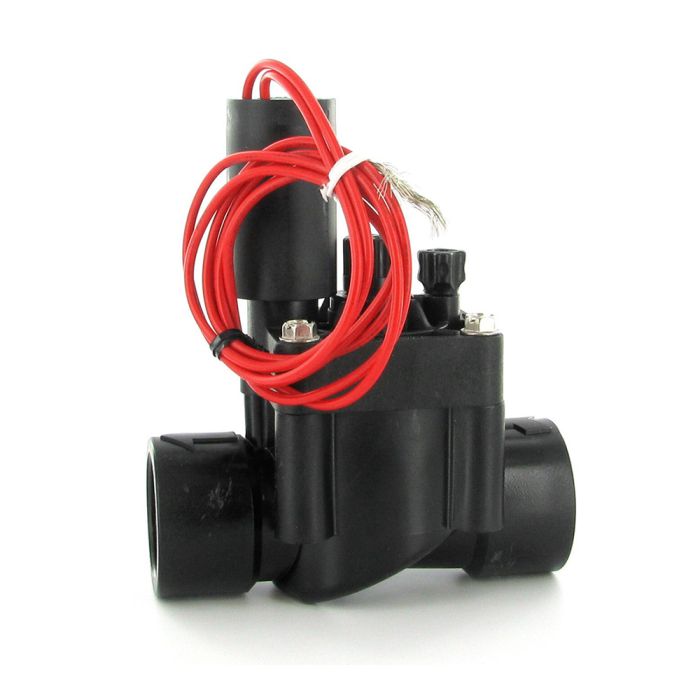

Hunter PGV Inline Valve with Flow Control 1 in. FPT | PGV-101G

• 1" Hunter PGV-101G Valve
• With Flow Control
• 1" Female Threaded Inlet/ Outlet

Features & Benefits

The Hunter PGV Valve is a professional-grade line of valves that are built to work with a broad range of landscaping demands.

This irrigation valve is considered a diligent, rugged, and mighty addition to any sprinkler and irrigation system. The Hunter PGV-Series Valve offers features such as rigid diaphragm support, flow control, and high-grade construction to prevent stress failure. This top-of-the-line valve has an internal manual bleed as well as a dependable Hunter solenoid for long life and operation.

• Heavy-duty Hunter solenoid: Provides dependable operation and long life
• High-grade construction, 150 PSI rating: Made of durable materials to resist wear
• External and Internal manual bleed: Easy to use and keeps valve box dry. All Hunter irrigation valves feature internal manual bleed, ensuring a neat, dry valve box
• Rigid diaphragm support: Works to prevent stress failure in tough conditions, ensures leak-free performance
• Globe and angle configurations: Easy to use in any application
• Captive bonnet bolts and solenoid plunger: No lost parts during servicing
• Low flow capability allows the use of Hunter's micro-irrigation products
• Accu-Sync pressure regulator compatible: Dial setting pressure regulation for precise system control
• Temperature rating: 150°F
• Warranty period: 2 years

Product Details

• Flow: .2 to 40 GPM
• Recommended Pressure Range: 20 to 150 PSI (1.4 to 10.3 bars; 138 to 1034 kPa)
• Heavy-duty solenoid: 24VAC; 370mA inrush current; 190mA holding current; 60 cycles; 475mA inrush current; 230mA holding current; 50 cycles

Dimensions

• 1" Globe and Male x Male: 5" H x 4 1/2" L x 2 1/2" W (13 cm H x 11 cm L x 6 cm W)
• 1" Male x Barb: 5" H x 5 1/2" L x 2 1/2" W (13 cm H x 14 cm L x 6 cm W)
• 1" Angle: 5 1/2" H x 3 1/2" L x 2 3/4" W (14 cm H x 9 cm L x 7 cm W)
• 1" Globe/Angle: 7 1/2" H x 5 3/4" L x 4 1/2" W (19 cm H x 15 cm L x 11 cm W)
• 2" Globe/Angle: 8" H x 6 3/4" L x 5 1/4" W (20 cm H x 17 cm L x 13 cm W)
