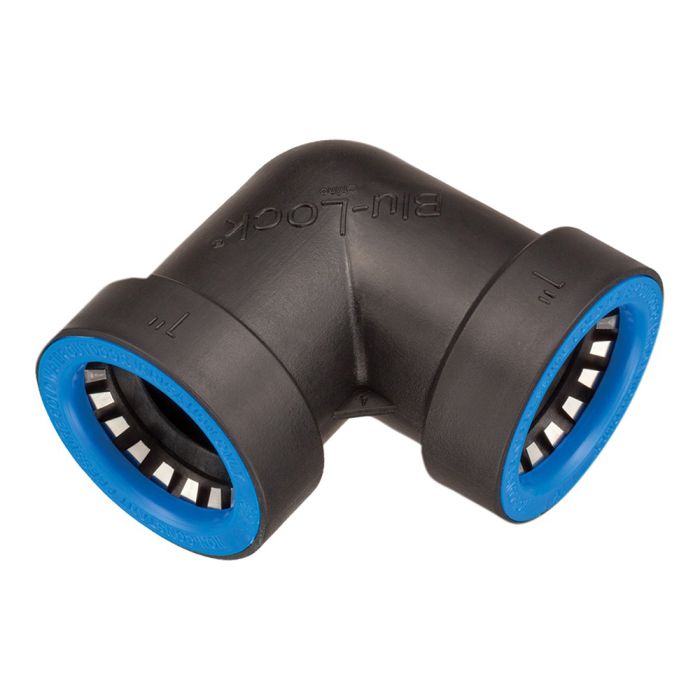

Hydro-Rain Blu-Lock Elbow 1" Blu-Lock
Overview
- Hydro-Rain Blu-Lock Elbow
- Working Pressure: 10-150 PSI
- Fitting Size: 1"
Features & Benefits
Working in a sprinkler trench is tough enough-don't make it harder by using traditional pipe fitting methods that require hot, toxic glue, clamps or frustrating barbed fittings. Hydro-Rain offers a better way: Blu-Lock. Everything you do from the valve out, you can now do faster and easier with Blu-Lock. Primer? Glue? Clamps? Tools?
With the Blue-Lock system, you don't need them! Simply stated, Blu-Lock by Hydro-Rain is the fastest, greenest, irrigation installation method in the world. Blu-Lock is for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections only.
- Heavy-Duty Construction Built tough fittings made from UV-resistant ABS, stainless steel and EPDM seals are designed and tested to ensure toughness.
- Patented Retaining System Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
- Patented Retaining System Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
- Outside Diameter (OD) Technology Flow is unimpeded for 25 percent increase in flow versus traditional insert fittings.
- High Quality and "Easy-Flex" Blu-Lock® lateral and swing pipe are made from virgin resins and meet ASTM standards.
- Releasable 1/2" swing fittings are releasable with the patented quick release collar and 3/4" and 1" fittings release with release tools. All fittings can be reused.
- Hydro-Rain® Warranty 3-year limited warranty on fittings, 30-year limited warranty on pipe. Some restrictions apply.
Blu-Lock® 3X takes installation speed and ease to new heights. The addition of three key new features makes push-fit installation easier and more flexible.
- Easier insertion force has been reduced by half to make installation even faster.
- Compatible works with all 80# and 100# SIDR 15 and 19 pipe.
- Releasable all 1/2", 3/4", and 1" fittings are releasable and reusable with the Blu-Lock® release tool or "BLR" collar. Simply stated, Blu-Lock® 3X is the fastest, greenest, irrigation installation method in the world.
Built for Speed Advantages
- Patented "Push-and-Go" Design 100% tool and chemical free approach cut installation time in half.
- True System Integration Total compatibility of fittings, pipe, manifolds, valves, saddles, and heads.
- Exclusive Trench and Trenchless Technology Coil and straight length pipe options provide unrivaled flexibility.
Built for Green Advantages
- Blu-Lock® Pipe is "Green" Environmentally-friendly, recyclable HDPE pipe provides a superior alternative to PVC.
- Blu-Lock® Fittings are Green Outside diameter (OD) technology ensure lower friction loss for better efficiency.
- Pipe and Fittings are Chemical Free Glueless, tool-free installation protects the environment and the long-term health of your crew.
Product Details
Blu-Lock® 1" (2,5 cm) Lateral Pipe Fittings:
- Max Working Pressure: 150 PSI (10,3 BAR) at 72°F (23°C)
- Burst Pressure: Exceeds 350 PSI (24,1 BAR)
- Working Pressure: 10-150 PSI (0,69-10,3 BAR)
Materials
- UV-resistant ABS, stainless steel and EPDM
- Color: Blue
1" (2,54 CM) PIPE PRESSURE LOSS*
FLOW (GPM) |
VELOCITY (FPS) |
PRESSURE LOSS (PSI) |
---|
1 |
- |
- |
2 |
- |
- |
3 |
- |
- |
4 |
1.48 |
0.46 |
5 |
1.86 |
0.76 |
6 |
2.23 |
1.06 |
7 |
2.60 |
1.37 |
8 |
2.97 |
1.80 |
9 |
3.34 |
2.23 |
10 |
3.71 |
2.76 |
11 |
4.08 |
3.07 |
12 |
4.45 |
3.85 |
13 |
4.83 |
4.45 |
14 |
5.2 |
5.10 |
15 |
5.57 |
5.76 |
20 |
7.42 |
9.90 |
25 |
9.98 |
14.90 |
* For non-constant pressure valve-out outdoor irrigation connections only. Working in a sprinkler trench is tough enough don't make it harder by using traditional pipe fitting methods that require hot, toxic glue, clamps, or frustrating barbed fittings. Hydro-Rain® offers a better way: Blu-Lock® push-ngo lateral sprinkler pipe fittings for HDPE and swing pipe.
PSI vs. Flow Rate
PSI |
1 IN. GPM |
---|
40 |
11 |
50 |
13 |
60 |
14 |
70 |
16 |
* Measured in 100' lengths
