Irritrol 205 Inline Valve with Flow Control 1 in. FPT | 205TF

Free Shipping on Orders over $149
Sales Price $17.14 Our Price $33.95 You save 50%

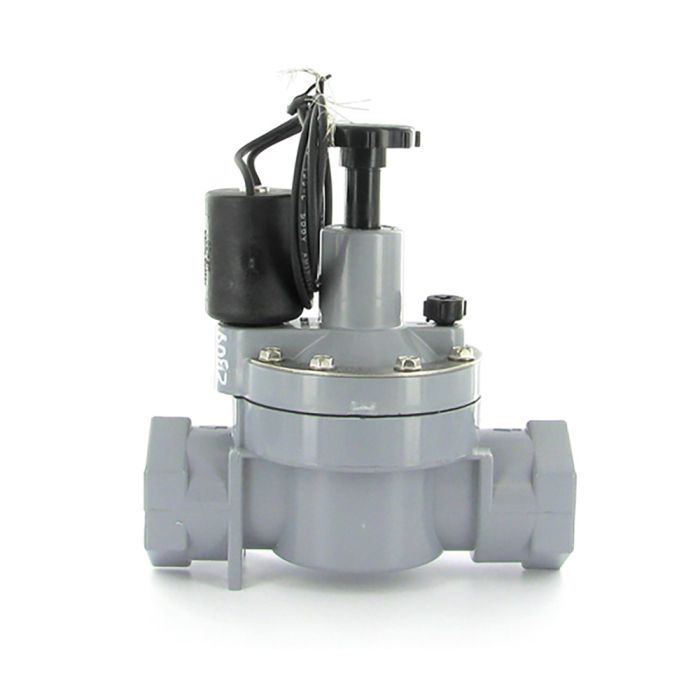

Irritrol 205TF 1 in. FPT Valve with Flow Control

  • 1" Irritrol 205TF Valve
  • With Flow Control
  • 1" Female Threaded Inlet/Outlet

Features & Benefits

Irritrol Valves have set the industry standard for reliable performance and innovation for over 40 years. The Irritrol 205 Series 1-inch plastic valve is the irrigation industry's time-tested leader for dependable operation in potable and dirty water applications. With a proven track record of success in a wide range of environments, these debris-tolerant valves are available with flow control as an optional feature. Constructed of heavy-duty, corrosion- and UV-resistant PVC, the 205 Series features a high-flow, low-friction-loss-design that has a pressure range of 10-150 psi and flow range of .25-30 GPM. A manual bleed and a rugged, nylon-reinforced Buna-N diaphragm add to this valve's wide popularity.

Highly reliable and easily recognizable, Irritrol continues to raise its standards to produce premier products which are durable, cost-effective and upon which you can depend.

Added Features

  • Buna-N valve seat seal
  • Manual external bleed
  • Debris-tolerant design
  • Encapsulated injection-molded solenoid with a captive hex plunger
  • Removable, tamper-resistant flow control handle
  • Easily serviced without removal from the system
  • Five-year warranty

Product Details

  • Heavy-duty, corrosion- and UV-resistant PVC construction
  • Proven durability
  • High-flow, low friction loss design
  • More efficient system design and low-flow capability
  • Rugged, nylon-reinforced Buna-N diaphragm
  • Ensures a leak-proof seal
  • Available in female NPT or slip configurations (no male pipe adapter required)
  • Will handle all regional installation variances
  • Optional flow control
  • Allows precise adjustment and manual shutoff


  • H: 5 18", W: 2 ¾", L: 5"

Operating Specifications

  • Flow range: 0.25-30 GPM
  • Pressure range: 10-150 psi

Electrical Specifications

  • Solenoid: 24 V ac
  • Inrush volt-amp: 24 V ac-9.6 VA
  • Inrush current: .4 amp
  • Holding volt-amp: 24 V ac-4.8 VA
  • Holding current: .2 amp


  • 205S 1" slip connection
  • 205SF 1" slip connection with flow control
  • 205T 1" NPT threaded connection
  • 205TF 1" NPT threaded connection with flow control205SF 1" slip connection with flow control
  • 205T 1" NPT threaded connection
  • 205TF 1" NPT threaded connection with flow control

Optional Accessories

  • A: DC Latching Solenoid (DCL)
  • B: R205KIT
  • C: R205TFKIT
MODEL SIZE .25 2 5 10 15 20 30
205 Sries 1" 5.40 3.82 3.00 2.20 1.90 3.10 5.10


Related Articles & Videos



More Information
Brand Irritrol
Body Material Heavy-Duty PVC
Flow Control Flow Control
Valve Type In-Line
Connection FPT
Type Inline Valve
Application Residential
Solenoid Yes
Warranty 5 Years
Size 1 in.
