Irritrol PLATINUM SPORT Rotor with Check Valve 5 in. | PTSPORT

SKU

PTSPORT

Sales Price $36.90 Our Price $51.95 You save 29%

Overview

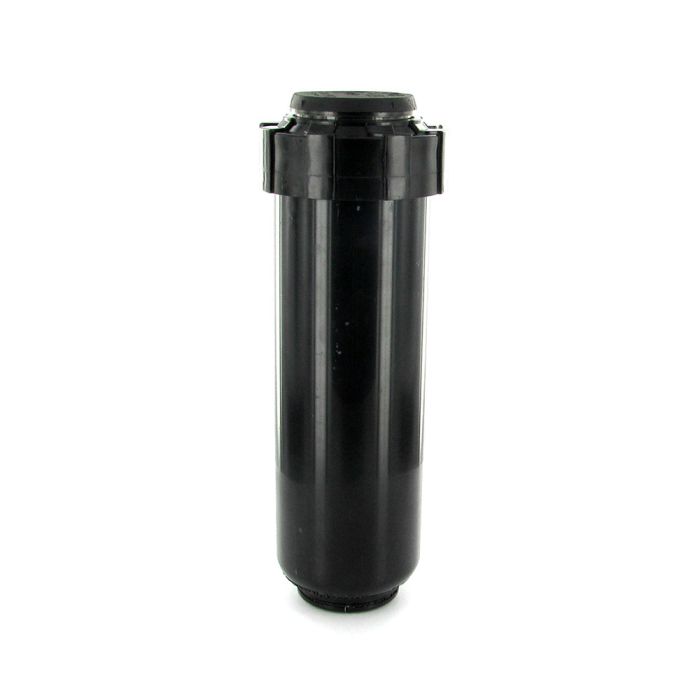

Irritrol PTSPORT 5.75 in. Pop-Up Rotor

The Irritrol Platinum Sport Series rotor is designed for reliable performance and superior coverage in light commercial and commercial applications. A full 5-inch pop-up height provides superior coverage in tall grass, while full- and part-circle operation in one unit reduces inventory requirements and increases convenience. Add to this a choice of seven nozzle sizes and its easy to see why the Platinum Sport Series is quickly becoming an industry favorite.

Features & Benefits

Full 5-inch pop-up height to nozzle Clears tall grass
Reversible check valve Eliminates low-head drainage
Standard rubber cover Provides added protection against debris and keeps playing areas safe
ArcView arc indicator Simplifies adjustments
Adjustable part-circle and unidirectional full-circle coverage in one unit (45-360) Reduces inventory requirements
Automatic arc return Protects against tampering and vandalism
Water-lubricated gear drive assembly Enhances reliability
Top adjust, wet or dry For fast, convenient installation
Optional Stainless Steel Riser Helps to deter vandalism and provides longer life

Operating Specifications

Precipitation rate: .62-1.42 inches per hour
Radius: 46-75
Flow rate: 6.8-30.5 GPM
Recommended operating pressure range: 40-100 psi
Optimum operating pressure: 70 psi
Inlet size: 1 threaded NPT or 1 BSP
Nozzle trajectory: 25
Arc adjustment: 45-360 (unidirectional at 360)

Specs

More Information
Brand	Irritrol
Product Type	Rotors
Application	Commercial
Body Height	8-4/5
Inlet Size	1 in.
Pressure Range (PSI)	40-100
Warranty	5 Years
Spray Pattern	Part Circle Adjustable (45 - 360)
Spray Radius	46 ft. - 75 ft.
Advanced Features	Check Valve
Series	PT
Pop-Up Height	5 in.
Riser Material	Plastic
Check Valve	Check Valve
